CF16空心法兰(不旋转-螺栓孔接头法兰)
CF法兰
.jpg)
.jpg)
-TAP.jpg)
.jpg)
-TAP.jpg)
-TAP.jpg)

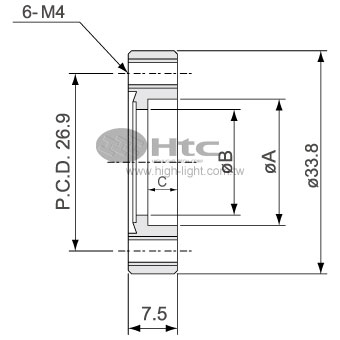

-TAP-D.jpg)
| select | ||||||
| Model No. | CF16B7TAP | CF16B12TAP | CF16B19TAP | CF16B7TAP-316 | CF16B12TAP-316 | CF16B19TAP-316 |
| Parts No. | 154602043 | 154602073 | 154602093 | 154602045 | 154602075 | 154602095 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 316 S.S. | 316 S.S. | 316 S.S. |
| A | 6.5 | 12.9 | 19.15 | 6.5 | 12.9 | 19.15 |
| B | 5.5 | 10.4 | 16 | 5.5 | 10.4 | 16 |
| C | 5.3 | 4.5 | 4.5 | 5.3 | 4.5 | 4.5 |
| Inch spec. | 1-1/3" | 1-1/3" | 1-1/3" | 1-1/3" | 1-1/3" | 1-1/3" |
| Select | Model No. | Parts No. | Material | A | B | C | Inch spec. |
| CF16B7TAP | 154602043 | 304 S.S. | 6.5 | 5.5 | 5.3 | 1-1/3" | |
| CF16B12TAP | 154602073 | 304 S.S. | 12.9 | 10.4 | 4.5 | 1-1/3" | |
| CF16B19TAP | 154602093 | 304 S.S. | 19.15 | 16 | 4.5 | 1-1/3" | |
| CF16B7TAP-316 | 154602045 | 316 S.S. | 6.5 | 5.5 | 5.3 | 1-1/3" | |
| CF16B12TAP-316 | 154602075 | 316 S.S. | 12.9 | 10.4 | 4.5 | 1-1/3" | |
| CF16B19TAP-316 | 154602095 | 316 S.S. | 19.15 | 16 | 4.5 | 1-1/3" |
