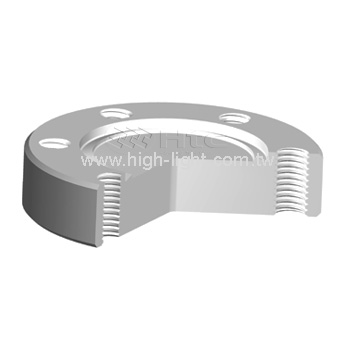

CF封盖(不旋转-螺栓孔接头法兰)
CF法兰
.jpg)
-TAP.jpg)
.jpg)
-TAP.jpg)
.jpg)
-TAP.jpg)

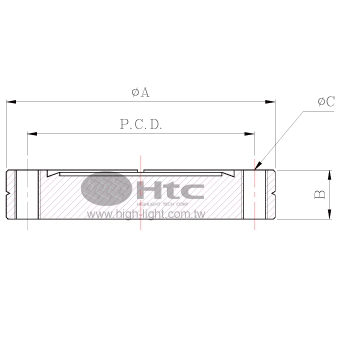

| select | ||||||||||||||||||||||
| Model No. | CF16BTAP | CF35BTAP | CF63BTAP | CF100BTAP | CF150BTAP | CF200BTAP | CF250BTAP | CF275BTAP | CF300BTAP-14" | CF300BTAP | CF350BTAP | CF16BTAP-316 | CF35BTAP-316 | CF63BTAP-316 | CF100BTAP-316 | CF150BTAP-316 | CF200BTAP-316 | CF250BTAP-316 | CF275BTAP-316 | CF300BTAP-14"-316 | CF300BTAP-316 | CF350BTAP-316 |
| Parts No. | 154202003 | 154204003 | 154207003 | 154209003 | 154211003 | 154213003 | 1542X1003 | 154214003 | 154215003 | 1542X2003 | 154217003 | 154202005 | 154204005 | 154207005 | 154209005 | 154211005 | 154213005 | 1542X1005 | 154214005 | 154215005 | 1542X2005 | 154217005 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. |
| A | 33.8 | 69.5 | 113.6 | 151.6 | 202.5 | 253.2 | 304 | 336.5 | 355.6 | 368.3 | 419.1 | 33.8 | 69.5 | 113.6 | 151.6 | 202.5 | 253.2 | 304 | 336.5 | 355.6 | 368.3 | 419.1 |
| B | 7.5 | 12.7 | 18 | 20 | 22 | 24.7 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 7.5 | 12.7 | 18 | 20 | 22 | 24.7 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 |
| C*No. | M4*6 | M6*6 | M8*8 | M8*16 | M8*20 | M8*24 | M8*32 | M10*30 | M10*30 | M10*32 | M10*36 | M4*6 | M6*6 | M8*8 | M8*16 | M8*20 | M8*24 | M8*32 | M10*30 | M10*30 | M10*32 | M10*36 |
| Inch spec. | 1-1/3" | 2-3/4" | 4-1/2" | 6" | 8" | 10" | 12" | 13-1/4" | 14" | 14-1/2" | 16-1/2" | 1-1/3" | 2-3/4" | 4-1/2" | 6" | 8" | 10" | 12" | 13-1/4" | 14" | 14-1/2" | 16-1/2" |
| P.C.D. | 26.9 | 58.7 | 92.1 | 130.3 | 181 | 231.8 | 284 | 306.3 | 325.5 | 338.1 | 388.9 | 26.9 | 58.7 | 92.1 | 130.3 | 181 | 231.8 | 284 | 306.3 | 325.5 | 338.1 | 388.9 |
| Select | Model No. | Parts No. | Material | A | B | C*No. | Inch spec. | P.C.D. |
| CF16BTAP | 154202003 | 304 S.S. | 33.8 | 7.5 | M4*6 | 1-1/3" | 26.9 | |
| CF35BTAP | 154204003 | 304 S.S. | 69.5 | 12.7 | M6*6 | 2-3/4" | 58.7 | |
| CF63BTAP | 154207003 | 304 S.S. | 113.6 | 18 | M8*8 | 4-1/2" | 92.1 | |
| CF100BTAP | 154209003 | 304 S.S. | 151.6 | 20 | M8*16 | 6" | 130.3 | |
| CF150BTAP | 154211003 | 304 S.S. | 202.5 | 22 | M8*20 | 8" | 181 | |
| CF200BTAP | 154213003 | 304 S.S. | 253.2 | 24.7 | M8*24 | 10" | 231.8 | |
| CF250BTAP | 1542X1003 | 304 S.S. | 304 | 28.5 | M8*32 | 12" | 284 | |
| CF275BTAP | 154214003 | 304 S.S. | 336.5 | 28.5 | M10*30 | 13-1/4" | 306.3 | |
| CF300BTAP-14" | 154215003 | 304 S.S. | 355.6 | 28.5 | M10*30 | 14" | 325.5 | |
| CF300BTAP | 1542X2003 | 304 S.S. | 368.3 | 28.5 | M10*32 | 14-1/2" | 338.1 | |
| CF350BTAP | 154217003 | 304 S.S. | 419.1 | 28.5 | M10*36 | 16-1/2" | 388.9 | |
| CF16BTAP-316 | 154202005 | 316 S.S. | 33.8 | 7.5 | M4*6 | 1-1/3" | 26.9 | |
| CF35BTAP-316 | 154204005 | 316 S.S. | 69.5 | 12.7 | M6*6 | 2-3/4" | 58.7 | |
| CF63BTAP-316 | 154207005 | 316 S.S. | 113.6 | 18 | M8*8 | 4-1/2" | 92.1 | |
| CF100BTAP-316 | 154209005 | 316 S.S. | 151.6 | 20 | M8*16 | 6" | 130.3 | |
| CF150BTAP-316 | 154211005 | 316 S.S. | 202.5 | 22 | M8*20 | 8" | 181 | |
| CF200BTAP-316 | 154213005 | 316 S.S. | 253.2 | 24.7 | M8*24 | 10" | 231.8 | |
| CF250BTAP-316 | 1542X1005 | 316 S.S. | 304 | 28.5 | M8*32 | 12" | 284 | |
| CF275BTAP-316 | 154214005 | 316 S.S. | 336.5 | 28.5 | M10*30 | 13-1/4" | 306.3 | |
| CF300BTAP-14"-316 | 154215005 | 316 S.S. | 355.6 | 28.5 | M10*30 | 14" | 325.5 | |
| CF300BTAP-316 | 1542X2005 | 316 S.S. | 368.3 | 28.5 | M10*32 | 14-1/2" | 338.1 | |
| CF350BTAP-316 | 154217005 | 316 S.S. | 419.1 | 28.5 | M10*36 | 16-1/2" | 388.9 |
