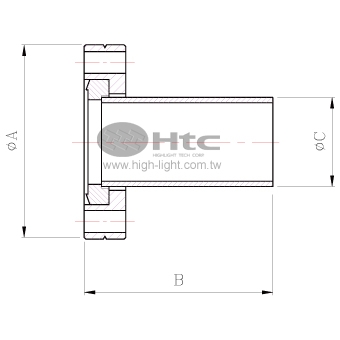

CF对焊法兰(可旋转)
CF法兰
.jpg)
-TAP.jpg)
.jpg)
-TAP.jpg)
.jpg)
-TAP.jpg)
| select | ||||||
| Model No. | CR16HN | CR35HN | CR63HN | CR100HN | CR150HN | CR200HN |
| Parts No. | 155702093 | 155704133 | 155707153 | 155709183 | 155711203 | 155713213 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
| A | 33.8 | 69.5 | 113.6 | 151.6 | 202.5 | 253.2 |
| B | 38 | 63 | 105 | 135 | 167 | 167 |
| C | 19.05 | 38.1 | 63.5 | 101.6 | 152.4 | 203.2 |
| t | 1.65 | 1.65 | 2 | 2.1 | 2.77 | 2 |
| Inch spec. | 1-1/3" | 2-3/4" | 4-1/2" | 6" | 8" | 10" |
| Select | Model No. | Parts No. | Material | A | B | C | t | Inch spec. |
| CR16HN | 155702093 | 304 S.S. | 33.8 | 38 | 19.05 | 1.65 | 1-1/3" | |
| CR35HN | 155704133 | 304 S.S. | 69.5 | 63 | 38.1 | 1.65 | 2-3/4" | |
| CR63HN | 155707153 | 304 S.S. | 113.6 | 105 | 63.5 | 2 | 4-1/2" | |
| CR100HN | 155709183 | 304 S.S. | 151.6 | 135 | 101.6 | 2.1 | 6" | |
| CR150HN | 155711203 | 304 S.S. | 202.5 | 167 | 152.4 | 2.77 | 8" | |
| CR200HN | 155713213 | 304 S.S. | 253.2 | 167 | 203.2 | 2 | 10" |
