CF16空心法兰(短颈可旋转)
CF法兰
select | ||||||

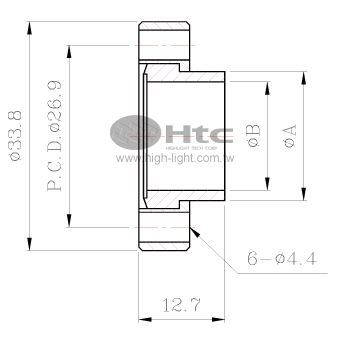

Model No. | CR16B7N | CR16B12N | CR16B19N | CR16B7N-316 | CR16B12N-316 | CR16B19N-316 |
Parts No. | 155102043 | 155102073 | 155102093 | 155102045 | 155102075 | 155102095 |
Material | 304 S.S. | 304 S.S. | 304 S.S. | 316 S.S. | 316 S.S. | 316 S.S. |
A | 6.35 | 12.7 | 19.05 | 6.35 | 12.7 | 19.05 |
B | 4.5 | 9.5 | 16 | 4.5 | 9.5 | 16 |
Inch spec. | 1-1/3" | 1-1/3" | 1-1/3" | 1-1/3" | 1-1/3" | 1-1/3" |
Select | Model No. | Parts No. | Material | A | B | Inch spec. |
CR16B7N | 155102043 | 304 S.S. | 6.35 | 4.5 | 1-1/3" | |
CR16B12N | 155102073 | 304 S.S. | 12.7 | 9.5 | 1-1/3" | |
CR16B19N | 155102093 | 304 S.S. | 19.05 | 16 | 1-1/3" | |
CR16B7N-316 | 155102045 | 316 S.S. | 6.35 | 4.5 | 1-1/3" | |
CR16B12N-316 | 155102075 | 316 S.S. | 12.7 | 9.5 | 1-1/3" | |
CR16B19N-316 | 155102095 | 316 S.S. | 19.05 | 16 | 1-1/3" |
