CF大转小缩减法兰
CF法兰
.jpg)
-TAP.jpg)
.jpg)
-TAP.jpg)
.jpg)
-TAP.jpg)

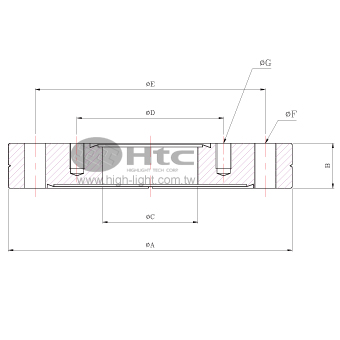

| select | |||||||||||||||||
| Model No. | CF35RF16 | CF63RF16 | CF63RF35 | CF100RF35 | CF100RF63 | CF150RF35 | CF150RF63 | CF150RF100 | CF200RF35 | CF200RF63 | CF200RF100 | CF200RF150 | CF275RF35 | CF275RF63 | CF275RF100 | CF275RF150 | CF275RF200 |
| Parts No. | 17480409052 | 17480709052 | 17480709082 | 17480909082 | 17480909132 | 17481109082 | 17481109132 | 17481109152 | 17481309082 | 17481309132 | 17481309152 | 17481309172 | 17481409082 | 17481409132 | 17481409152 | 17481409172 | 17481409192 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
| A | 69.5 | 113.6 | 113.6 | 151.6 | 151.6 | 202.5 | 202.5 | 202.5 | 253.2 | 253.2 | 253.2 | 253.2 | 336.5 | 336.5 | 336.5 | 336.5 | 336.5 |
| B | 12.7 | 18 | 18 | 20 | 20 | 22 | 22 | 22 | 24.7 | 24.7 | 24.7 | 24.7 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 |
| C | 15.8 | 15.8 | 38.1 | 38.1 | 63.5 | 38.1 | 63.5 | 101.6 | 38.1 | 63.5 | 101.6 | 152.4 | 38.1 | 63.5 | 101.6 | 152.4 | 203.2 |
| D | 26.9 | 26.9 | 58.7 | 58.7 | 92.1 | 58.7 | 92.1 | 130.3 | 58.7 | 92.1 | 130.3 | 181 | 58.7 | 92.1 | 130.3 | 181 | 231.8 |
| E | 58.7 | 92.1 | 92.1 | 130.3 | 130.3 | 181 | 181 | 181 | 231.8 | 231.8 | 231.8 | 231.8 | 306.3 | 306.3 | 306.3 | 306.3 | 306.3 |
| F*No. | 6.7*6 | 8.4*8 | 8.4*8 | 8.4*16 | 8.4*16 | 8.4*20 | 8.4*20 | 8.4*20 | 8.4*24 | 8.4*24 | 8.4*24 | 8.4*24 | 10.3*30 | 10.3*30 | 10.3*30 | 10.3*30 | 10.3*30 |
| G*No. | M4*6 | M4*6 | M6*6 | M6*6 | M8*8 | M6*6 | M8*8 | M8*16 | M6*6 | M8*8 | M8*16 | M8*20 | M6*6 | M8*8 | M8*16 | M8*20 | M8*24 |
| Inch spec. | 2-3/4" | 4-1/2" | 4-1/2" | 6" | 6" | 8" | 8" | 8" | 10" | 10" | 10" | 10" | 13-1/4" | 13-1/4" | 13-1/4" | 13-1/4" | 13-1/4" |
| Thread Depth | 7 | 10 | 10 | 12 | 12 | 12 | 14 | 14 | 12 | 15 | 15 | 15 | 12 | 15 | 15 | 15 | 15 |
| Select | Model No. | Parts No. | Material | A | B | C | D | E | F*No. | G*No. | Inch spec. | Thread Depth |
| CF35RF16 | 17480409052 | 304 S.S. | 69.5 | 12.7 | 15.8 | 26.9 | 58.7 | 6.7*6 | M4*6 | 2-3/4" | 7 | |
| CF63RF16 | 17480709052 | 304 S.S. | 113.6 | 18 | 15.8 | 26.9 | 92.1 | 8.4*8 | M4*6 | 4-1/2" | 10 | |
| CF63RF35 | 17480709082 | 304 S.S. | 113.6 | 18 | 38.1 | 58.7 | 92.1 | 8.4*8 | M6*6 | 4-1/2" | 10 | |
| CF100RF35 | 17480909082 | 304 S.S. | 151.6 | 20 | 38.1 | 58.7 | 130.3 | 8.4*16 | M6*6 | 6" | 12 | |
| CF100RF63 | 17480909132 | 304 S.S. | 151.6 | 20 | 63.5 | 92.1 | 130.3 | 8.4*16 | M8*8 | 6" | 12 | |
| CF150RF35 | 17481109082 | 304 S.S. | 202.5 | 22 | 38.1 | 58.7 | 181 | 8.4*20 | M6*6 | 8" | 12 | |
| CF150RF63 | 17481109132 | 304 S.S. | 202.5 | 22 | 63.5 | 92.1 | 181 | 8.4*20 | M8*8 | 8" | 14 | |
| CF150RF100 | 17481109152 | 304 S.S. | 202.5 | 22 | 101.6 | 130.3 | 181 | 8.4*20 | M8*16 | 8" | 14 | |
| CF200RF35 | 17481309082 | 304 S.S. | 253.2 | 24.7 | 38.1 | 58.7 | 231.8 | 8.4*24 | M6*6 | 10" | 12 | |
| CF200RF63 | 17481309132 | 304 S.S. | 253.2 | 24.7 | 63.5 | 92.1 | 231.8 | 8.4*24 | M8*8 | 10" | 15 | |
| CF200RF100 | 17481309152 | 304 S.S. | 253.2 | 24.7 | 101.6 | 130.3 | 231.8 | 8.4*24 | M8*16 | 10" | 15 | |
| CF200RF150 | 17481309172 | 304 S.S. | 253.2 | 24.7 | 152.4 | 181 | 231.8 | 8.4*24 | M8*20 | 10" | 15 | |
| CF275RF35 | 17481409082 | 304 S.S. | 336.5 | 28.5 | 38.1 | 58.7 | 306.3 | 10.3*30 | M6*6 | 13-1/4" | 12 | |
| CF275RF63 | 17481409132 | 304 S.S. | 336.5 | 28.5 | 63.5 | 92.1 | 306.3 | 10.3*30 | M8*8 | 13-1/4" | 15 | |
| CF275RF100 | 17481409152 | 304 S.S. | 336.5 | 28.5 | 101.6 | 130.3 | 306.3 | 10.3*30 | M8*16 | 13-1/4" | 15 | |
| CF275RF150 | 17481409172 | 304 S.S. | 336.5 | 28.5 | 152.4 | 181 | 306.3 | 10.3*30 | M8*20 | 13-1/4" | 15 | |
| CF275RF200 | 17481409192 | 304 S.S. | 336.5 | 28.5 | 203.2 | 231.8 | 306.3 | 10.3*30 | M8*24 | 13-1/4" | 15 |
