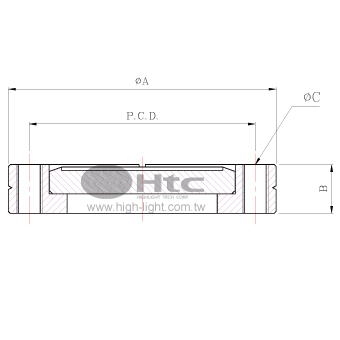

CF封盖(可旋转-螺栓孔接头法兰)
CF法兰
.jpg)
-TAP.jpg)
.jpg)
-TAP.jpg)
.jpg)
-TAP.jpg)
| select | ||||||||||||||||||||||
| Model No. | CR16BTAP | CR35BTAP | CR63BTAP | CR100BTAP | CR150BTAP | CR200BTAP | CR250BTAP | CR275BTAP | CR300BTAP-14" | CR300BTAP | CR350BTAP | CR16BTAP-316 | CR35BTAP-316 | CR63BTAP-316 | CR100BTAP-316 | CR150BTAP-316 | CR200BTAP-316 | CR250BTAP-316 | CR275BTAP-316 | CR300BTAP-14"-316 | CR300BTAP-316 | CR350BTAP-316 |
| Parts No. | 154402003 | 154404003 | 154407003 | 154409003 | 154411003 | 154413003 | 1544X1003 | 154414003 | 154415003 | 1544X2003 | 154417003 | 154402005 | 154404005 | 154407005 | 154409005 | 154411005 | 154413005 | 1544X1005 | 154414005 | 154415005 | 1544X2005 | 154417005 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. |
| A | 33.8 | 69.5 | 113.6 | 151.6 | 202.5 | 253.2 | 304 | 336.5 | 355.6 | 368.3 | 419.1 | 33.8 | 69.5 | 113.6 | 151.6 | 202.5 | 253.2 | 304 | 336.5 | 355.6 | 368.3 | 419.1 |
| B | 7.5 | 12.7 | 19 | 21.5 | 24 | 24.7 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 7.5 | 12.7 | 19 | 21.5 | 24 | 24.7 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 |
| C*No. | M4*6 | M6*6 | M8*8 | M8*16 | M8*20 | M8*24 | M8*32 | M10*30 | M10*30 | M10*32 | M10*36 | M4*6 | M6*6 | M8*8 | M8*16 | M8*20 | M8*24 | M8*32 | M10*30 | M10*30 | M10*32 | M10*36 |
| Inch spec. | 1-1/3" | 2-3/4" | 4-1/2" | 6" | 8" | 10" | 12" | 13-1/4" | 14" | 14-1/2" | 16-1/2" | 1-1/3" | 2-3/4" | 4-1/2" | 6" | 8" | 10" | 12" | 13-1/4" | 14" | 14-1/2" | 16-1/2" |
| P.C.D. | 26.9 | 58.7 | 92.1 | 130.3 | 181 | 231.8 | 284 | 306.3 | 325.5 | 338.1 | 388.9 | 26.9 | 58.7 | 92.1 | 130.3 | 181 | 231.8 | 284 | 306.3 | 325.5 | 338.1 | 388.9 |
| Select | Model No. | Parts No. | Material | A | B | C*No. | Inch spec. | P.C.D. |
| CR16BTAP | 154402003 | 304 S.S. | 33.8 | 7.5 | M4*6 | 1-1/3" | 26.9 | |
| CR35BTAP | 154404003 | 304 S.S. | 69.5 | 12.7 | M6*6 | 2-3/4" | 58.7 | |
| CR63BTAP | 154407003 | 304 S.S. | 113.6 | 19 | M8*8 | 4-1/2" | 92.1 | |
| CR100BTAP | 154409003 | 304 S.S. | 151.6 | 21.5 | M8*16 | 6" | 130.3 | |
| CR150BTAP | 154411003 | 304 S.S. | 202.5 | 24 | M8*20 | 8" | 181 | |
| CR200BTAP | 154413003 | 304 S.S. | 253.2 | 24.7 | M8*24 | 10" | 231.8 | |
| CR250BTAP | 1544X1003 | 304 S.S. | 304 | 28.5 | M8*32 | 12" | 284 | |
| CR275BTAP | 154414003 | 304 S.S. | 336.5 | 28.5 | M10*30 | 13-1/4" | 306.3 | |
| CR300BTAP-14" | 154415003 | 304 S.S. | 355.6 | 28.5 | M10*30 | 14" | 325.5 | |
| CR300BTAP | 1544X2003 | 304 S.S. | 368.3 | 28.5 | M10*32 | 14-1/2" | 338.1 | |
| CR350BTAP | 154417003 | 304 S.S. | 419.1 | 28.5 | M10*36 | 16-1/2" | 388.9 | |
| CR16BTAP-316 | 154402005 | 316 S.S. | 33.8 | 7.5 | M4*6 | 1-1/3" | 26.9 | |
| CR35BTAP-316 | 154404005 | 316 S.S. | 69.5 | 12.7 | M6*6 | 2-3/4" | 58.7 | |
| CR63BTAP-316 | 154407005 | 316 S.S. | 113.6 | 19 | M8*8 | 4-1/2" | 92.1 | |
| CR100BTAP-316 | 154409005 | 316 S.S. | 151.6 | 21.5 | M8*16 | 6" | 130.3 | |
| CR150BTAP-316 | 154411005 | 316 S.S. | 202.5 | 24 | M8*20 | 8" | 181 | |
| CR200BTAP-316 | 154413005 | 316 S.S. | 253.2 | 24.7 | M8*24 | 10" | 231.8 | |
| CR250BTAP-316 | 1544X1005 | 316 S.S. | 304 | 28.5 | M8*32 | 12" | 284 | |
| CR275BTAP-316 | 154414005 | 316 S.S. | 336.5 | 28.5 | M10*30 | 13-1/4" | 306.3 | |
| CR300BTAP-14"-316 | 154415005 | 316 S.S. | 355.6 | 28.5 | M10*30 | 14" | 325.5 | |
| CR300BTAP-316 | 1544X2005 | 316 S.S. | 368.3 | 28.5 | M10*32 | 14-1/2" | 338.1 | |
| CR350BTAP-316 | 154417005 | 316 S.S. | 419.1 | 28.5 | M10*36 | 16-1/2" | 388.9 |
