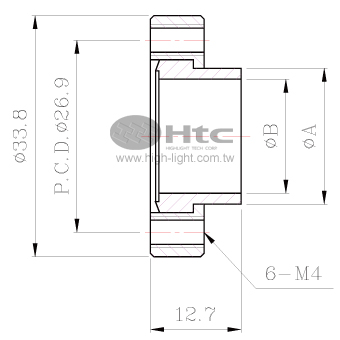

CF16空心法兰(短颈可旋转-螺栓孔接头法兰)
CF法兰
.jpg)
-TAP.jpg)
.jpg)
-TAP.jpg)
.jpg)
-TAP.jpg)
-TAP-D.jpg)
| select | ||||||
| Model No. | CR16B7TAPN | CR16B12TAPN | CR16B19TAPN | CR16B7TAPN-316 | CR16B12TAPN-316 | CR16B19TAPN-316 |
| Parts No. | 155202043 | 155202073 | 155202093 | 155202045 | 155202075 | 155202095 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 316 S.S. | 316 S.S. | 316 S.S. |
| A | 6.35 | 12.7 | 19.05 | 6.35 | 12.7 | 19.05 |
| B | 4.5 | 9.5 | 16 | 4.5 | 9.5 | 16 |
| Inch spec. | 1-1/3" | 1-1/3" | 1-1/3" | 1-1/3" | 1-1/3" | 1-1/3" |
| Select | Model No. | Parts No. | Material | A | B | Inch spec. |
| CR16B7TAPN | 155202043 | 304 S.S. | 6.35 | 4.5 | 1-1/3" | |
| CR16B12TAPN | 155202073 | 304 S.S. | 12.7 | 9.5 | 1-1/3" | |
| CR16B19TAPN | 155202093 | 304 S.S. | 19.05 | 16 | 1-1/3" | |
| CR16B7TAPN-316 | 155202045 | 316 S.S. | 6.35 | 4.5 | 1-1/3" | |
| CR16B12TAPN-316 | 155202075 | 316 S.S. | 12.7 | 9.5 | 1-1/3" | |
| CR16B19TAPN-316 | 155202095 | 316 S.S. | 19.05 | 16 | 1-1/3" |
