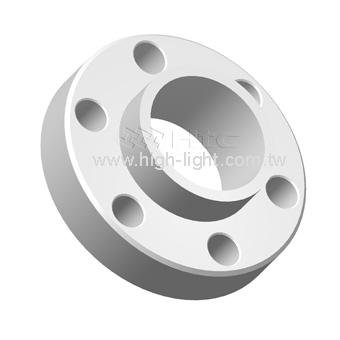

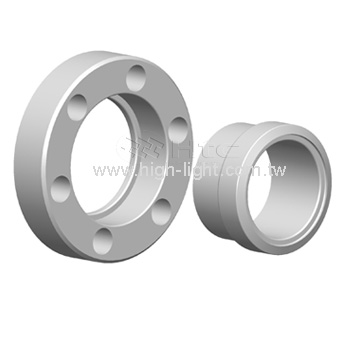

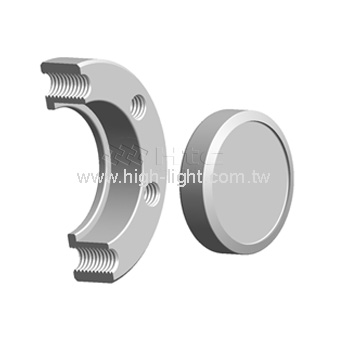

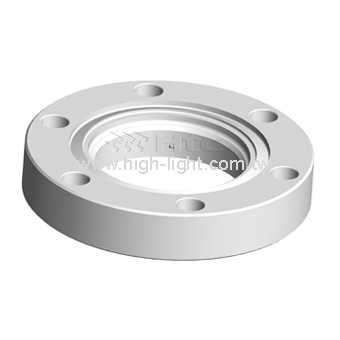

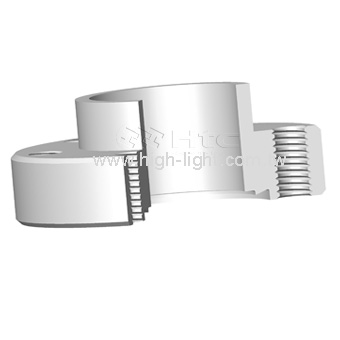

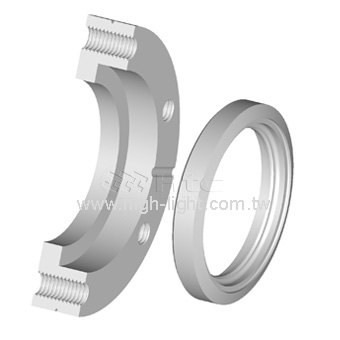

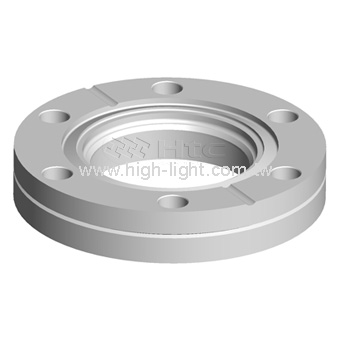

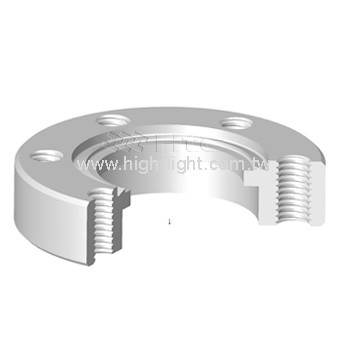

CF封盖法兰(不旋转)
CF法兰
.jpg)
-TAP.jpg)
.jpg)
-TAP.jpg)
.jpg)
-TAP.jpg)

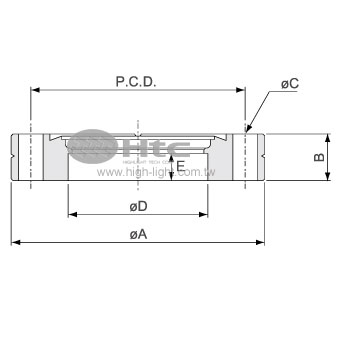

| select | ||||||||||||||||||||||||||
| Model No. | CF35B25 | CF35B38 | CF35B42 | CF63B51 | CF63B63 | CF100B102 | CF150B153 | CF200B204 | CF250B255 | CF275B255 | CF300B305-14" | CF300B305 | CR350B356 | CF35B25-316 | CF35B38-316 | CF35B42-316 | CF63B51-316 | CF63B63-316 | CF100B102-316 | CF150B153-316 | CF200B204-316 | CF250B255-316 | CF275B255-316 | CF300B305-14"-316 | CF300B305-316 | CF350B356-316 |
| Parts No. | 154504113 | 154504133 | 154504AG3 | 154507143 | 154507153 | 154509183 | 154511203 | 154513213 | 1545X1223 | 154514223 | 154515233 | 1545X2233 | 154517243 | 154504115 | 154504135 | 154504AG5 | 154507145 | 154507155 | 154509185 | 154511205 | 154513215 | 1545X1225 | 154514225 | 154515235 | 1545X2235 | 154517245 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. |
| A | 69.5 | 69.5 | 69.5 | 113.6 | 113.6 | 151.6 | 202.5 | 253.2 | 304 | 336.5 | 355.6 | 368.3 | 419.1 | 69.5 | 69.5 | 69.5 | 113.6 | 113.6 | 151.6 | 202.5 | 253.2 | 304 | 336.5 | 355.6 | 368.3 | 419.1 |
| B | 12.7 | 12.7 | 12.7 | 18 | 18 | 20 | 22 | 24.7 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 12.7 | 12.7 | 12.7 | 18 | 18 | 20 | 22 | 24.7 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 |
| C*No. | 6.7*6 | 6.7*6 | 6.7*6 | 8.4*8 | 8.4*8 | 8.4*16 | 8.4*20 | 8.4*24 | 8.4*32 | 10.3*30 | 10.3*30 | 10.3*32 | 10.3*36 | 6.7*6 | 6.7*6 | 6.7*6 | 8.4*8 | 8.4*8 | 8.4*16 | 8.4*20 | 8.4*24 | 8.4*32 | 10.3*30 | 10.3*30 | 10.3*32 | 10.3*36 |
| D | 25.6 | 38.3 | 42.9 | 51.1 | 63.7 | 102.2 | 153.1 | 203.7 | 255 | 255 | 305.3 | 305.3 | 356.1 | 25.6 | 38.3 | 42.9 | 51.1 | 63.7 | 102.2 | 153.1 | 203.7 | 255 | 255 | 305.3 | 305.3 | 356.1 |
| E | 7.4 | 7.4 | 7.4 | 8.5 | 8.5 | 8.9 | 9.3 | 12 | 15.8 | 15.8 | 15.8 | 15.8 | 8.8 | 7.4 | 7.4 | 7.4 | 8.5 | 8.5 | 8.9 | 9.3 | 12 | 15.8 | 15.8 | 15.8 | 15.8 | 15.8 |
| Inch spec. | 2-3/4" | 2-3/4" | 2-3/4" | 4-1/2" | 4-1/2" | 6" | 8" | 10" | 12" | 13-1/4" | 14" | 14-1/2" | 16-1/2" | 2-3/4" | 2-3/4" | 2-3/4" | 4-1/2" | 4-1/2" | 6" | 8" | 10" | 12" | 13-1/4" | 13-1/4" | 14-1/2" | 16-1/2" |
| P.C.D. | 58.7 | 58.7 | 58.7 | 92.1 | 92.1 | 130.3 | 181 | 231.8 | 284 | 306.3 | 325.5 | 338.1 | 388.9 | 58.7 | 58.7 | 58.7 | 92.1 | 92.1 | 130.3 | 181 | 231.8 | 284 | 306.3 | 325.5 | 338.1 | 388.9 |
| Select | Model No. | Parts No. | Material | A | B | C*No. | D | E | Inch spec. | P.C.D. |
| CF35B25 | 154504113 | 304 S.S. | 69.5 | 12.7 | 6.7*6 | 25.6 | 7.4 | 2-3/4" | 58.7 | |
| CF35B38 | 154504133 | 304 S.S. | 69.5 | 12.7 | 6.7*6 | 38.3 | 7.4 | 2-3/4" | 58.7 | |
| CF35B42 | 154504AG3 | 304 S.S. | 69.5 | 12.7 | 6.7*6 | 42.9 | 7.4 | 2-3/4" | 58.7 | |
| CF63B51 | 154507143 | 304 S.S. | 113.6 | 18 | 8.4*8 | 51.1 | 8.5 | 4-1/2" | 92.1 | |
| CF63B63 | 154507153 | 304 S.S. | 113.6 | 18 | 8.4*8 | 63.7 | 8.5 | 4-1/2" | 92.1 | |
| CF100B102 | 154509183 | 304 S.S. | 151.6 | 20 | 8.4*16 | 102.2 | 8.9 | 6" | 130.3 | |
| CF150B153 | 154511203 | 304 S.S. | 202.5 | 22 | 8.4*20 | 153.1 | 9.3 | 8" | 181 | |
| CF200B204 | 154513213 | 304 S.S. | 253.2 | 24.7 | 8.4*24 | 203.7 | 12 | 10" | 231.8 | |
| CF250B255 | 1545X1223 | 304 S.S. | 304 | 28.5 | 8.4*32 | 255 | 15.8 | 12" | 284 | |
| CF275B255 | 154514223 | 304 S.S. | 336.5 | 28.5 | 10.3*30 | 255 | 15.8 | 13-1/4" | 306.3 | |
| CF300B305-14" | 154515233 | 304 S.S. | 355.6 | 28.5 | 10.3*30 | 305.3 | 15.8 | 14" | 325.5 | |
| CF300B305 | 1545X2233 | 304 S.S. | 368.3 | 28.5 | 10.3*32 | 305.3 | 15.8 | 14-1/2" | 338.1 | |
| CR350B356 | 154517243 | 304 S.S. | 419.1 | 28.5 | 10.3*36 | 356.1 | 8.8 | 16-1/2" | 388.9 | |
| CF35B25-316 | 154504115 | 316 S.S. | 69.5 | 12.7 | 6.7*6 | 25.6 | 7.4 | 2-3/4" | 58.7 | |
| CF35B38-316 | 154504135 | 316 S.S. | 69.5 | 12.7 | 6.7*6 | 38.3 | 7.4 | 2-3/4" | 58.7 | |
| CF35B42-316 | 154504AG5 | 316 S.S. | 69.5 | 12.7 | 6.7*6 | 42.9 | 7.4 | 2-3/4" | 58.7 | |
| CF63B51-316 | 154507145 | 316 S.S. | 113.6 | 18 | 8.4*8 | 51.1 | 8.5 | 4-1/2" | 92.1 | |
| CF63B63-316 | 154507155 | 316 S.S. | 113.6 | 18 | 8.4*8 | 63.7 | 8.5 | 4-1/2" | 92.1 | |
| CF100B102-316 | 154509185 | 316 S.S. | 151.6 | 20 | 8.4*16 | 102.2 | 8.9 | 6" | 130.3 | |
| CF150B153-316 | 154511205 | 316 S.S. | 202.5 | 22 | 8.4*20 | 153.1 | 9.3 | 8" | 181 | |
| CF200B204-316 | 154513215 | 316 S.S. | 253.2 | 24.7 | 8.4*24 | 203.7 | 12 | 10" | 231.8 | |
| CF250B255-316 | 1545X1225 | 316 S.S. | 304 | 28.5 | 8.4*32 | 255 | 15.8 | 12" | 284 | |
| CF275B255-316 | 154514225 | 316 S.S. | 336.5 | 28.5 | 10.3*30 | 255 | 15.8 | 13-1/4" | 306.3 | |
| CF300B305-14"-316 | 154515235 | 316 S.S. | 355.6 | 28.5 | 10.3*30 | 305.3 | 15.8 | 13-1/4" | 325.5 | |
| CF300B305-316 | 1545X2235 | 316 S.S. | 368.3 | 28.5 | 10.3*32 | 305.3 | 15.8 | 14-1/2" | 338.1 | |
| CF350B356-316 | 154517245 | 316 S.S. | 419.1 | 28.5 | 10.3*36 | 356.1 | 15.8 | 16-1/2" | 388.9 |
