CF封盖(可旋转)
CF法兰
.jpg)
-TAP.jpg)
.jpg)
-TAP.jpg)
.jpg)
-TAP.jpg)
| select | ||||||||||||||||||||||

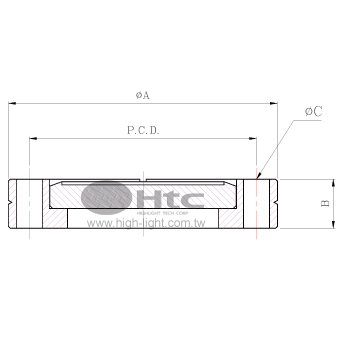

| Model No. | CR16B | CR35B | CR63B | CR100B | CR150B | CR200B | CR250B | CR275B | CR300B-14" | CR300B | CR350B | CR16B-316 | CR35B-316 | CR63B-316 | CR100B-316 | CR150B-316 | CR200B-316 | CR250B-316 | CR275B-316 | CR300B-14"-316 | CR300B-316 | CR350B-316 |
| Parts No. | 154302003 | 154304003 | 154307003 | 154309003 | 154311003 | 154313003 | 1543X1003 | 154314003 | 154315003 | 1543X2003 | 154317003 | 154302005 | 154304005 | 154307005 | 154309005 | 154311005 | 154313005 | 1543X1005 | 154314005 | 154315005 | 1543X2005 | 154317005 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. |
| A | 33.8 | 69.5 | 113.6 | 151.6 | 202.5 | 253.2 | 304 | 336.5 | 355.6 | 368.3 | 419.1 | 33.8 | 69.5 | 113.6 | 151.6 | 202.5 | 253.2 | 304 | 336.5 | 355.6 | 368.3 | 419.1 |
| B | 7.5 | 12.7 | 19 | 21.5 | 24 | 24.7 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 7.5 | 12.7 | 19 | 21.5 | 24 | 24.7 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 |
| C*No. | 4.4*6 | 6.7*6 | 8.4*8 | 8.4*16 | 8.4*20 | 8.4*24 | 8.4*32 | 10.3*30 | 10.3*30 | 10.3*32 | 10.3*36 | 4.4*6 | 6.7*6 | 8.4*8 | 8.4*16 | 8.4*20 | 8.4*24 | 8.4*32 | 10.3*30 | 10.3*30 | 10.3*32 | 10.3*36 |
| Inch spec. | 1-1/3" | 2-3/4" | 4-1/2" | 6" | 8" | 10" | 12" | 13-1/4" | 14" | 14-1/2" | 16-1/2" | 1-1/3" | 2-3/4" | 4-1/2" | 6" | 8" | 10" | 12" | 13-1/4" | 14" | 14-1/2" | 16-1/2" |
| P.C.D. | 26.9 | 58.7 | 92.1 | 130.3 | 181 | 231.8 | 284 | 306.3 | 325.5 | 338.1 | 388.9 | 26.9 | 58.7 | 92.1 | 130.3 | 181 | 231.8 | 284 | 306.3 | 325.5 | 338.1 | 388.9 |
| Select | Model No. | Parts No. | Material | A | B | C*No. | Inch spec. | P.C.D. |
| CR16B | 154302003 | 304 S.S. | 33.8 | 7.5 | 4.4*6 | 1-1/3" | 26.9 | |
| CR35B | 154304003 | 304 S.S. | 69.5 | 12.7 | 6.7*6 | 2-3/4" | 58.7 | |
| CR63B | 154307003 | 304 S.S. | 113.6 | 19 | 8.4*8 | 4-1/2" | 92.1 | |
| CR100B | 154309003 | 304 S.S. | 151.6 | 21.5 | 8.4*16 | 6" | 130.3 | |
| CR150B | 154311003 | 304 S.S. | 202.5 | 24 | 8.4*20 | 8" | 181 | |
| CR200B | 154313003 | 304 S.S. | 253.2 | 24.7 | 8.4*24 | 10" | 231.8 | |
| CR250B | 1543X1003 | 304 S.S. | 304 | 28.5 | 8.4*32 | 12" | 284 | |
| CR275B | 154314003 | 304 S.S. | 336.5 | 28.5 | 10.3*30 | 13-1/4" | 306.3 | |
| CR300B-14" | 154315003 | 304 S.S. | 355.6 | 28.5 | 10.3*30 | 14" | 325.5 | |
| CR300B | 1543X2003 | 304 S.S. | 368.3 | 28.5 | 10.3*32 | 14-1/2" | 338.1 | |
| CR350B | 154317003 | 304 S.S. | 419.1 | 28.5 | 10.3*36 | 16-1/2" | 388.9 | |
| CR16B-316 | 154302005 | 316 S.S. | 33.8 | 7.5 | 4.4*6 | 1-1/3" | 26.9 | |
| CR35B-316 | 154304005 | 316 S.S. | 69.5 | 12.7 | 6.7*6 | 2-3/4" | 58.7 | |
| CR63B-316 | 154307005 | 316 S.S. | 113.6 | 19 | 8.4*8 | 4-1/2" | 92.1 | |
| CR100B-316 | 154309005 | 316 S.S. | 151.6 | 21.5 | 8.4*16 | 6" | 130.3 | |
| CR150B-316 | 154311005 | 316 S.S. | 202.5 | 24 | 8.4*20 | 8" | 181 | |
| CR200B-316 | 154313005 | 316 S.S. | 253.2 | 24.7 | 8.4*24 | 10" | 231.8 | |
| CR250B-316 | 1543X1005 | 316 S.S. | 304 | 28.5 | 8.4*32 | 12" | 284 | |
| CR275B-316 | 154314005 | 316 S.S. | 336.5 | 28.5 | 10.3*30 | 13-1/4" | 306.3 | |
| CR300B-14"-316 | 154315005 | 316 S.S. | 355.6 | 28.5 | 10.3*30 | 14" | 325.5 | |
| CR300B-316 | 1543X2005 | 316 S.S. | 368.3 | 28.5 | 10.3*32 | 14-1/2" | 338.1 | |
| CR350B-316 | 154317005 | 316 S.S. | 419.1 | 28.5 | 10.3*36 | 16-1/2" | 388.9 |
