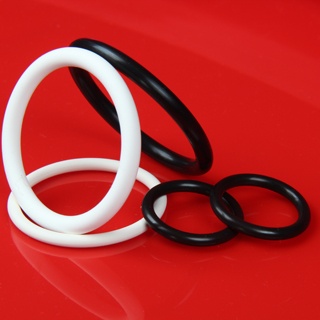

全氟橡胶O型圈环 (FFKM)
日扬科技供应任何材质制造的全氟橡胶O型圈环(FFKM), O-rings (O型圈) 产品从外径为1.5毫米(0.06“)到 2米(6.5英尺)
全氟橡胶O型圈环(FFKM)线径为 0.8mm(0.03”)到12mm(0.47“)两部分，无论量小或量大均接单生产，欢迎来信 ec@high-light.com.tw 洽询。
 |
全氟橡胶O型圈环 O-RING(FFKM)具有良好的耐化学介质性能，可耐各种制程中的酸、硷、氨类清洗剂。 全氟橡胶O型圈环 O-RING(FFKM)具有低透湿性及良好的力学性能和压缩永久变形性能，适用于化学湿制程中的静态和动态密封(例如过滤密封、排水密封、酸洗槽等)。推荐连续工作的最高温度是260°C。 |
 |
|
在很多应用情况下，弹性体的体积膨胀是一个评估其是否适用的标准。过大的体积膨胀会导致永久的密封失效。尽管仍需要测试其他物理性能来评估其是否满足某种特定的应用，但体积膨胀却是评估耐化学介质性的一个好指标。
| Fluoro Rubber Replace For Import Type Specification Table | ||||
| Model | Color | Application | Properties | Compare (Replace ) |
| PF92T TPF |
Clear | PF92T is a peroxide curable fluoroelastomer designed for high performance semiconductor manufacturing applications where both high purity and low particle generation are required. For Dry Process | High purity (low amount of extractables) Very good oxygen and fluorine plasma resistance Very low particle generation Low out gassing Low friction High abrasion resistance Excellent mechanical and sealing properties |
Kalrez 9100 Kalrez 9300 Kalrez 9500 Kalrez 8900 ARMOR CRYSTAL |
| PF90V FEPM |
Clear | PF90V is a peroxide curable fluoroelastomer designed for high performance semiconductor manufacturing applications where both high purity and low particle generation are required. For Wet Process | High purity (low amount of extractables) Very good oxygen and fluorine plasma resistance Very low particle generation Low out gassing Low friction High abrasion resistance Excellent mechanical and sealing properties |
Kalrez 9100 Kalrez 9300 Kalrez 9500 Kalrez 8900 ARMOR CRYSTAL |
| PF325 FFKM |
White | Polymer compound PF325 is a 75-durometer, white, low-compression set,high strength perfluoroelastomer. The operating temperature range for PF325 is from -10°C(14°F) to 260°C(500°F) . Typical application environments for PF325 seals are aggressive dry process chemistries, including reactive plasmas. | Low-compression set High strength perfluoroelastomer Operating temperature range -10°C(14°F) to 260°C(500°F) Dry process chemistries, including reactive plasmas. |
Kalrez 8085 Kalrez 2037 Chemraz 514 Chemraz 520 |
| PF326 FFKM |
Black | Polymer compound PF326 is a 75-durometer, black, low-compression set,high strength perfluoroelastomer. The operating temperature range for PF326 is from -10°C(14°F) to 260°C(500°F) . Typical application environments for PF326 seals are aggressive dry process chemistries, including reactive plasmas. | Low-compression set High strength perfluoroelastomer Operating temperature range -10°C(14°F) to 260°C(500°F) Dry process chemistries, including reactive plasmas. |
Kalrez 6375 Chemraz 510 |
| PF586 FFKM |
White | Polymer compound PF586 is a 75-durometer, white, low-compression set,high strength perfluoroelastomer. The operating temperature range for PF586 is from -10°C(14°F) to 280°C(535°F) . Typical application environments for PF586 seals are aggressive dry process chemistries, including reactive plasmas. | Llow-compression set High strength perfluoroelastomer Operating temperature range -10°C(14°F) to 280°C(536°F) Dry process chemistries, including reactive plasmas. |
Kalrez 8575 Kalrez 8475 Chemraz E38 |
| PF587 FFKM |
Black | Polymer compound PF587 is a 75-durometer, black, low-compression set,high strength perfluoroelastomer. The operating temperature range for PF587 is from -10°C(14°F) to 280°C(535°F) . Typical application environments for PF587 seals are aggressive dry process chemistries, including reactive plasmas. | Llow-compression set High strength perfluoroelastomer Operating temperature range -10°C(14°F) to 280°C(572°F) Dry process chemistries, including reactive plasmas. |
Kalrez 4079 Kalrez 7075 Chemraz 555 Chemraz 615 |
| PF80E FEPM |
White/Black | Aggressive dry process chemistries, including reactive plasmas. | Low-compression set Operating temperature range -10°C(14°F) to 280°C(572°F) Dry process chemistries, including reactive plasmas. |
Parker V1260-75 |
| PF80V FK5 |
White/Black | PF80V is a new medium viscosity peroxide curable fluoroelastomer with a unique structure, patented by Polymer, that affords excellent resistance to aggressive oils, amine containing fluids, bases, and steam. | Excellent resistance to aggressive oils, amine containing fluids, bases, and steam. Use touch panel ITO process no roller mark |
Kalrez W230 NOK PF64 |
标准O形圈环尺寸: AS568，JIS P，G，V系列等，可根据要求提供，欢迎来信 ec@high-light.com.tw 洽询。
