90度弯头-KF法兰接口

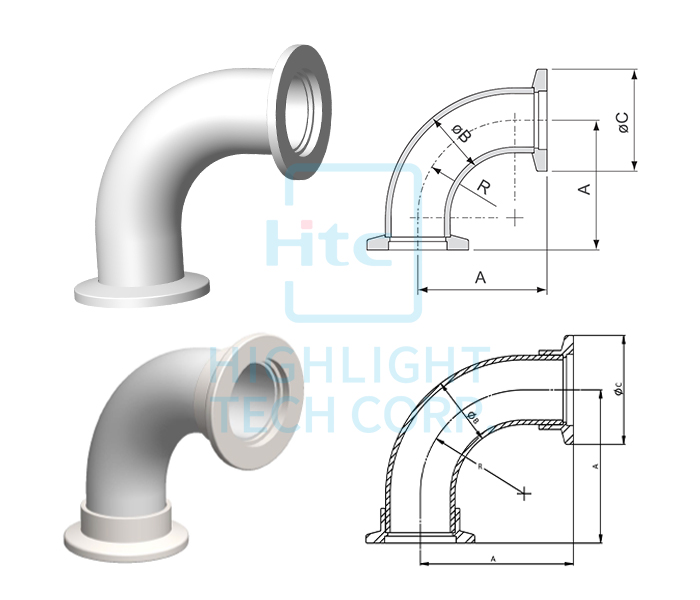

弯头 Elbows
| select | ||||||||
| Model No. | KF16EL90A | KF25EL90A | KF40EL90A | KF50EL90A | KF16EL90E | KF25EL90E | KF40EL90E | KF50EL90E |
| Parts No. | 16031021024 | 16031031034 | 16031051054 | 16031061064 | 16041021024 | 16041031034 | 16041051054 | 16041061064 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |

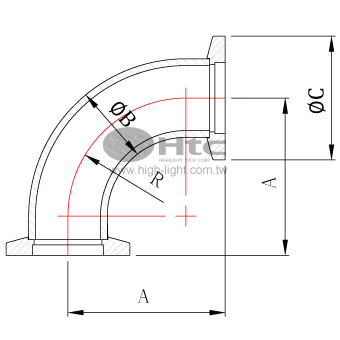

| A | 38.3 | 56.2 | 78.4 | 107 | 40 | 50.8 | 65 | 80 |
| B | 19.05 | 25.4 | 38.1 | 50.8 | 19.05 | 25.4 | 38.1 | 50.8 |
| C | 30 | 40 | 55 | 75 | 30 | 40 | 55 | 75 |
| R | 28.6 | 38.1 | 57.2 | 76.2 | 28.6 | 38.1 | 57.2 | 76.2 |
| Available area | USA | USA | USA | USA | Europe | Europe | Europe | Europe |
| Select | Model No. | Parts No. | Material | A | B | C | R | Available area |
| KF16EL90A | 16031021024 | 304 S.S. | 38.3 | 19.05 | 30 | 28.6 | USA | |
| KF25EL90A | 16031031034 | 304 S.S. | 56.2 | 25.4 | 40 | 38.1 | USA | |
| KF40EL90A | 16031051054 | 304 S.S. | 78.4 | 38.1 | 55 | 57.2 | USA | |
| KF50EL90A | 16031061064 | 304 S.S. | 107 | 50.8 | 75 | 76.2 | USA | |
| KF16EL90E | 16041021024 | 304 S.S. | 40 | 19.05 | 30 | 28.6 | Europe | |
| KF25EL90E | 16041031034 | 304 S.S. | 50.8 | 25.4 | 40 | 38.1 | Europe | |
| KF40EL90E | 16041051054 | 304 S.S. | 65 | 38.1 | 55 | 57.2 | Europe | |
| KF50EL90E | 16041061064 | 304 S.S. | 80 | 50.8 | 75 | 76.2 | Europe |
■可根据要求提供特殊尺寸
■零件号（零件号）加“ K”表示喷砂表面
■零件号（零件号）加“ L”表示抛光表面
