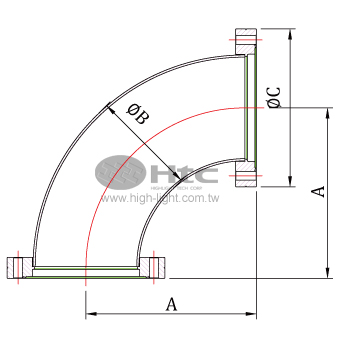

90度弯头-CF法兰接口-固定
弯头 Elbows
| select | |||||||
| Model No. | CF16EL90 | CF35EL90 | CF63EL90 | CF100EL90 | CF150EL90 | CF200EL90 | CF250EL90 |
| Parts No. | 16038028024 | 16038048044 | 16038078074 | 16038098094 | 16038118114 | 160381381342A | 160381481442A |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
| A | 37.5 | 79.9 | 141.3 | 222.2 | 241.3 | 215.9 | 266.7 |
| B | 19.05 | 38.1 | 63.5 | 101.6 | 152.4 | 219.08 | 273.05 |
| C | 33.8 | 69.5 | 113.6 | 151.6 | 202.5 | 253.2 | 336.5 |
| Select | Model No. | Parts No. | Material | A | B | C |
| CF16EL90 | 16038028024 | 304 S.S. | 37.5 | 19.05 | 33.8 | |
| CF35EL90 | 16038048044 | 304 S.S. | 79.9 | 38.1 | 69.5 | |
| CF63EL90 | 16038078074 | 304 S.S. | 141.3 | 63.5 | 113.6 | |
| CF100EL90 | 16038098094 | 304 S.S. | 222.2 | 101.6 | 151.6 | |
| CF150EL90 | 16038118114 | 304 S.S. | 241.3 | 152.4 | 202.5 | |
| CF200EL90 | 160381381342A | 304 S.S. | 215.9 | 219.08 | 253.2 | |
| CF250EL90 | 160381481442A | 304 S.S. | 266.7 | 273.05 | 336.5 |
■零件号（零件号）加“ K”表示喷砂表面
■零件号（零件号）加“ L”表示抛光表面
