45度弯头

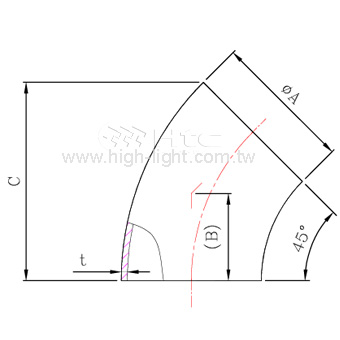

弯头 Elbows
| select | |||||||
| Model No. | 16EL45A | 25EL45A | 40EL45A | 50EL45A | 63EL45A | 80EL45A | 100EL45A |
| Parts No. | 16070020024 | 16070030034 | 16070050054 | 16070060064 | 16070070074 | 16070080084 | 16070090094 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
| A | 19.05 | 25.4 | 38.1 | 50.8 | 63.5 | 76.2 | 101.6 |
| (B) | (11.8) | (15.9) | (23.8) | (31.8) | (39.7) | (47.6) | (63.5) |
| C | 26.94 | 36.12 | 54.1 | 72.25 | 90.22 | 108.2 | 144.32 |
| t | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 2 |
| Select | Model No. | Parts No. | Material | A | (B) | C | t |
| 16EL45A | 16070020024 | 304 S.S. | 19.05 | (11.8) | 26.94 | 1.65 | |
| 25EL45A | 16070030034 | 304 S.S. | 25.4 | (15.9) | 36.12 | 1.65 | |
| 40EL45A | 16070050054 | 304 S.S. | 38.1 | (23.8) | 54.1 | 1.65 | |
| 50EL45A | 16070060064 | 304 S.S. | 50.8 | (31.8) | 72.25 | 1.65 | |
| 63EL45A | 16070070074 | 304 S.S. | 63.5 | (39.7) | 90.22 | 1.65 | |
| 80EL45A | 16070080084 | 304 S.S. | 76.2 | (47.6) | 108.2 | 1.65 | |
| 100EL45A | 16070090094 | 304 S.S. | 101.6 | (63.5) | 144.32 | 2 |
