90度弯头加长型
弯头 Elbows
| select | |||||||
| Model No. | 16ELT90A | 25ELT90A | 40ELT90A | 50ELT90A | 63ELT90A | 80ELT90A | 100ELT90A |
| Parts No. | 16240020024 | 16240030034 | 16240050054 | 16240060064 | 16240070074 | 16240080084 | 16240090094 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |

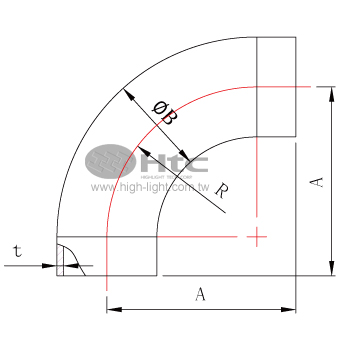

| A | 34.5 | 52.4 | 74.6 | 103.2 | 131.8 | 160.3 | 211.1 |
| B | 19.05 | 25.4 | 38.1 | 50.8 | 63.5 | 76.2 | 101.6 |
| R | 28.6 | 38.1 | 57.2 | 76.2 | 95.3 | 114.3 | 152.4 |
| t | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 2 |
| Select | Model No. | Parts No. | Material | A | B | R | t |
| 16ELT90A | 16240020024 | 304 S.S. | 34.5 | 19.05 | 28.6 | 1.65 | |
| 25ELT90A | 16240030034 | 304 S.S. | 52.4 | 25.4 | 38.1 | 1.65 | |
| 40ELT90A | 16240050054 | 304 S.S. | 74.6 | 38.1 | 57.2 | 1.65 | |
| 50ELT90A | 16240060064 | 304 S.S. | 103.2 | 50.8 | 76.2 | 1.65 | |
| 63ELT90A | 16240070074 | 304 S.S. | 131.8 | 63.5 | 95.3 | 1.65 | |
| 80ELT90A | 16240080084 | 304 S.S. | 160.3 | 76.2 | 114.3 | 1.65 | |
| 100ELT90A | 16240090094 | 304 S.S. | 211.1 | 101.6 | 152.4 | 2 |
