45度弯头加长型
弯头 Elbows
| select | |||||||

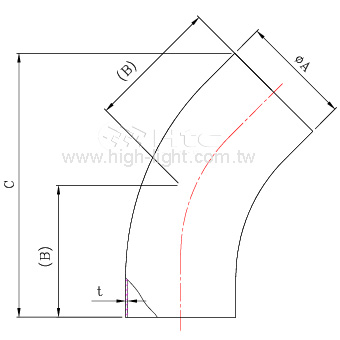

| Model No. | 16ELT45A | 25ELT45A | 40ELT45A | 50ELT45A | 63ELT45A | 80ELT45A | 100ELT45A |
| Parts No. | 16250020024 | 16250030034 | 16250050054 | 16250060064 | 16250070074 | 16250080084 | 16250090094 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
| A | 19.05 | 25.4 | 38.1 | 50.8 | 63.5 | 76.2 | 101.6 |
| (B) | (19.3) | (30.2) | (41.3) | (58.7) | (76.2) | (93.7) | (122.2) |
| C | 39.68 | 60.53 | 83.98 | 118.17 | 152.54 | 186.89 | 244.5 |
| t | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 2 |
| Select | Model No. | Parts No. | Material | A | (B) | C | t |
| 16ELT45A | 16250020024 | 304 S.S. | 19.05 | (19.3) | 39.68 | 1.65 | |
| 25ELT45A | 16250030034 | 304 S.S. | 25.4 | (30.2) | 60.53 | 1.65 | |
| 40ELT45A | 16250050054 | 304 S.S. | 38.1 | (41.3) | 83.98 | 1.65 | |
| 50ELT45A | 16250060064 | 304 S.S. | 50.8 | (58.7) | 118.17 | 1.65 | |
| 63ELT45A | 16250070074 | 304 S.S. | 63.5 | (76.2) | 152.54 | 1.65 | |
| 80ELT45A | 16250080084 | 304 S.S. | 76.2 | (93.7) | 186.89 | 1.65 | |
| 100ELT45A | 16250090094 | 304 S.S. | 101.6 | (122.2) | 244.5 | 2 |
