90度弯头
弯头 Elbows
| select | ||||||||
| Model No. | 16EL90A | 25EL90A | 40EL90A | 50EL90A | 63EL90A | 80EL90A | 100EL90A | 150EL90A |
| Parts No. | 16030020024 | 16030030034 | 16030050054 | 16030060064 | 16030070074 | 16030080084 | 16030090094 | 16030110114 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |

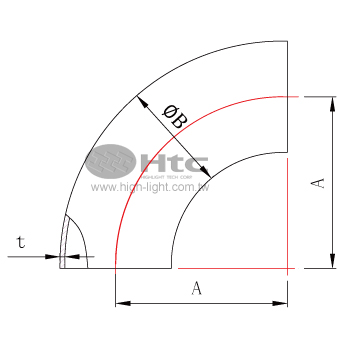

| A | 28.6 | 38.1 | 57.2 | 76.2 | 95.2 | 114.3 | 152.4 | 228.6 |
| B | 19.05 | 25.4 | 38.1 | 50.8 | 63.5 | 76.2 | 101.6 | 152.4 |
| t | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 2 | 2.7 |
| Select | Model No. | Parts No. | Material | A | B | t |
| 16EL90A | 16030020024 | 304 S.S. | 28.6 | 19.05 | 1.65 | |
| 25EL90A | 16030030034 | 304 S.S. | 38.1 | 25.4 | 1.65 | |
| 40EL90A | 16030050054 | 304 S.S. | 57.2 | 38.1 | 1.65 | |
| 50EL90A | 16030060064 | 304 S.S. | 76.2 | 50.8 | 1.65 | |
| 63EL90A | 16030070074 | 304 S.S. | 95.2 | 63.5 | 1.65 | |
| 80EL90A | 16030080084 | 304 S.S. | 114.3 | 76.2 | 1.65 | |
| 100EL90A | 16030090094 | 304 S.S. | 152.4 | 101.6 | 2 | |
| 150EL90A | 16030110114 | 304 S.S. | 228.6 | 152.4 | 2.7 |
