90度弯头-CF法兰接口-旋转

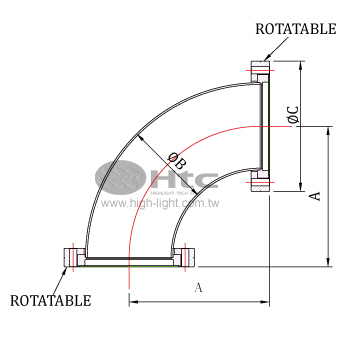

弯头 Elbows
select | |||||||
Model No. | CR16EL90 | CR35EL90 | CR63EL90 | CR100EL90 | CR150EL90 | CR200EL90 | CR250EL90 |
Parts No. | 16036026024 | 16036046044 | 16036076074 | 16036096094 | 16036116114 | 160361361342A | 160361461442A |
Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
A | 47.2 | 79.8 | 141.3 | 222.2 | 241.3 | 215.9 | 266.7 |
B | 19.05 | 38.1 | 63.5 | 101.6 | 152.4 | 219.08 | 273.05 |
C | 33.8 | 69.5 | 113.6 | 151.6 | 202.5 | 253.2 | 336.5 |
Select | Model No. | Parts No. | Material | A | B | C |
CR16EL90 | 16036026024 | 304 S.S. | 47.2 | 19.05 | 33.8 | |
CR35EL90 | 16036046044 | 304 S.S. | 79.8 | 38.1 | 69.5 | |
CR63EL90 | 16036076074 | 304 S.S. | 141.3 | 63.5 | 113.6 | |
CR100EL90 | 16036096094 | 304 S.S. | 222.2 | 101.6 | 151.6 | |
CR150EL90 | 16036116114 | 304 S.S. | 241.3 | 152.4 | 202.5 | |
CR200EL90 | 160361361342A | 304 S.S. | 215.9 | 219.08 | 253.2 | |
CR250EL90 | 160361461442A | 304 S.S. | 266.7 | 273.05 | 336.5 |
■零件号(零件号)加“ K”表示喷砂表面
■零件号(零件号)加“ L”表示抛光表面
