KF法兰单动无波纹管(美规)
气动式真空角阀
| select | ||||

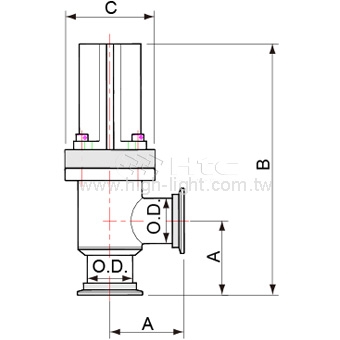

| Model No. | AV-KF16-P | AV-KF25-P | AV-KF40-P | AV-KF50-P |
| Parts No. | 300109110010 | 300111110010 | 300113110010 | 300114110010 |
| A"(mm) | 2.15"(54.6) | 2.03"(51.6) | 2.40"(61) | 3.40"(86.3) |
| B"(mm) | 6.77"(172) | 6.52"(165.7) | 8.28"(210) | 11.08"(267.6) |
| C"(mm) | 2.24"(56.8) | 2.24"(56.8) | 2.98"(75.8) | 3.48"(88.4) |
| O.D."(mm) | 0.75"(19.05) | 1.00"(25.4) | 1.50"(38.1) | 2.00"(50.8) |
| Select | Model No. | Parts No. | A"(mm) | B"(mm) | C"(mm) | O.D."(mm) |
| AV-KF16-P | 300109110010 | 2.15"(54.6) | 6.77"(172) | 2.24"(56.8) | 0.75"(19.05) | |
| AV-KF25-P | 300111110010 | 2.03"(51.6) | 6.52"(165.7) | 2.24"(56.8) | 1.00"(25.4) | |
| AV-KF40-P | 300113110010 | 2.40"(61) | 8.28"(210) | 2.98"(75.8) | 1.50"(38.1) | |
| AV-KF50-P | 300114110010 | 3.40"(86.3) | 11.08"(267.6) | 3.48"(88.4) | 2.00"(50.8) |
