KF法兰单动无波纹管(欧规)
气动式真空角阀
| select | ||||

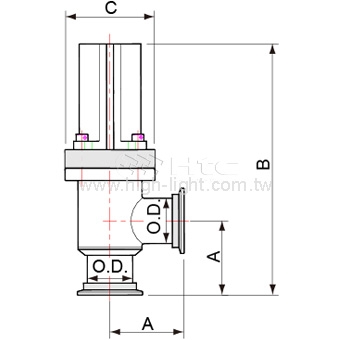

| Model No. | AV-KF16-P-E | AV-KF25-P-E | AV-KF40-P-E | AV-KF50-P-E |
| Parts No. | 310109110010 | 310111110010 | 310113110010 | 310114110010 |
| A | 40 | 50 | 65 | 70 |
| B | 157.4 | 164.1 | 214 | 251.3 |
| C | 56.8 | 56.8 | 75.8 | 88.4 |
| O.D. | 19.05 | 25.4 | 38.1 | 50.8 |
| Select | Model No. | Parts No. | A | B | C | O.D. |
| AV-KF16-P-E | 310109110010 | 40 | 157.4 | 56.8 | 19.05 | |
| AV-KF25-P-E | 310111110010 | 50 | 164.1 | 56.8 | 25.4 | |
| AV-KF40-P-E | 310113110010 | 65 | 214 | 75.8 | 38.1 | |
| AV-KF50-P-E | 310114110010 | 70 | 251.3 | 88.4 | 50.8 |
