ISO法兰双动无波纹管(欧规)
气动式真空角阀
select | |||

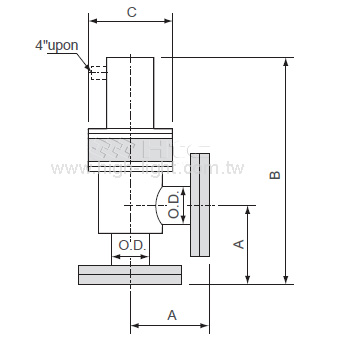

Model No. | AV-ISO63-P2-E | AV-ISO80-P2-E | AV-ISO100-P2-E |
Parts No. | 310115240010 | 310116240010 | 310118240010 |
A | 88 | 98 | 108 |
B | 276.9 | 286.9 | 346.6 |
C | 99.5 | 114 | 151.6 |
O.D. | 63.5 | 76.2 | 101.6 |
Select | Model No. | Parts No. | A | B | C | O.D. |
AV-ISO63-P2-E | 310115240010 | 88 | 276.9 | 99.5 | 63.5 | |
AV-ISO80-P2-E | 310116240010 | 98 | 286.9 | 114 | 76.2 | |
AV-ISO100-P2-E | 310118240010 | 108 | 346.6 | 151.6 | 101.6 |
