ISO法兰双动无波纹管(美规)
气动式真空角阀
| select | |||
| Model No. | AV-ISO63-P2 | AV-ISO-80-P2 | The valve port size above ISO-100 |
| Parts No. | 300115240010 | 300116240010 | see large angle valve |

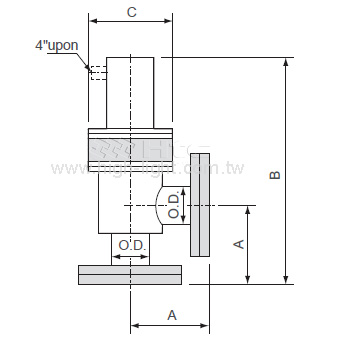

| A"(mm) | 3.26(82.8) | 3.51(89.1) | |
| B"(mm) | 10.70(271.7) | 10.94(278) | |
| C"(mm) | 3.92(99.5) | 4.49(114) | |
| O.D."(mm) | 2.50(63.5) | 3.00(76.2) | |
| Select | Model No. | Parts No. | A"(mm) | B"(mm) | C"(mm) | O.D."(mm) |
| AV-ISO63-P2 | 300115240010 | 3.26(82.8) | 10.70(271.7) | 3.92(99.5) | 2.50(63.5) | |
| AV-ISO-80-P2 | 300116240010 | 3.51(89.1) | 10.94(278) | 4.49(114) | 3.00(76.2) | |
| The valve port size above ISO-100 | see large angle valve |
注意：此页面上显示的所有尺寸均以英寸（mm）为单位
SolidWorks 2D和 3D产品图稿
| Model No. | AV-ISO63-P2 | AV-ISO80-P2 |
| Parts No. | 300115240010 | 300116240010 |
| Download Type | DWG | STEP | DWG | STEP |
注意：请按【滑鼠快捷】选择【另存新档】或【另存连结为】，需稍等一下即出现存档窗口。
ISO-100(含)以上阀门, 请参照Htc large angle valves大型角阀阀门规格表
