CF可旋转法兰双动无波纹管(美规)
气动式真空角阀
| select | ||

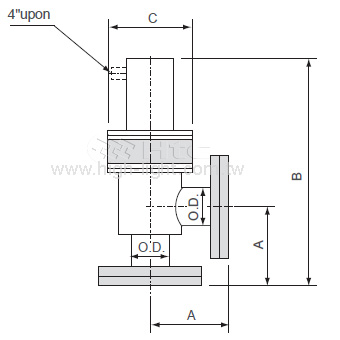

| Model No. | AV-CR63-P2 | AV-CR100-P2 |
| Parts No. | 300115230010 | 300118230010 |
| A"(mm) | 3.37(85.7) | 4.70(118) |
| B"(mm) | 10.81(274.6) | 14.61(356.6) |
| C"(mm) | 3.92(99.5) | 5.97(151.6) |
| O.D."(mm) | 2.50(63.5) | 4.00(101.6) |
| Select | Model No. | Parts No. | A"(mm) | B"(mm) | C"(mm) | O.D."(mm) |
| AV-CR63-P2 | 300115230010 | 3.37(85.7) | 10.81(274.6) | 3.92(99.5) | 2.50(63.5) | |
| AV-CR100-P2 | 300118230010 | 4.70(118) | 14.61(356.6) | 5.97(151.6) | 4.00(101.6) |
