CF可旋转法兰有波纹管附感应器(美规)
气动式真空角阀
| select | ||
| Model No. | AVBS-CR16-P | AVBS-CR35-P |
| Parts No. | 300109130216 | 300113130216 |

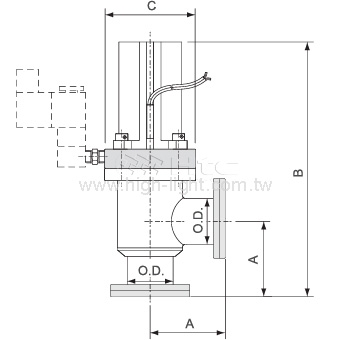

| A"(mm) | 2.50(63.5) | 2.46(62.5) |
| B"(mm) | 7.13(181.1) | 8.33(211.7) |
| C"(mm) | 2.24(56.8) | 2.98(75.8) |
| O.D."(mm) | 0.75(19.05) | 1.50(38.1) |
| Select | Model No. | Parts No. | A"(mm) | B"(mm) | C"(mm) | O.D."(mm) |
| AVBS-CR16-P | 300109130216 | 2.50(63.5) | 7.13(181.1) | 2.24(56.8) | 0.75(19.05) | |
| AVBS-CR35-P | 300113130216 | 2.46(62.5) | 8.33(211.7) | 2.98(75.8) | 1.50(38.1) |
