CF可旋转法兰单动有波纹管(美规)
气动式真空角阀

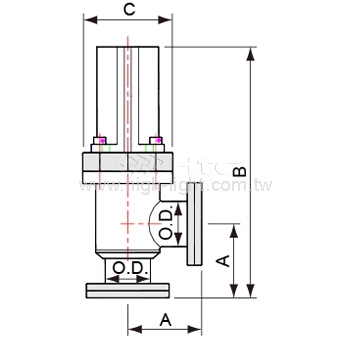

| select | ||
| Model No. | AVB-CR16-P | AVB-CR35-P |
| Parts No. | 300109130016 | 300113130016 |
| A"(mm) | 2.50"(63.5) | 2.46"(62.5) |
| B"(mm) | 7.13"(181.1) | 8.33"(211.7) |
| C"(mm) | 2.24"(56.8) | 2.98"(75.8) |
| O.D."(mm) | 0.75"(19.05) | 1.50"(38.1) |
| Select | Model No. | Parts No. | A"(mm) | B"(mm) | C"(mm) | O.D."(mm) |
| AVB-CR16-P | 300109130016 | 2.50"(63.5) | 7.13"(181.1) | 2.24"(56.8) | 0.75"(19.05) | |
| AVB-CR35-P | 300113130016 | 2.46"(62.5) | 8.33"(211.7) | 2.98"(75.8) | 1.50"(38.1) |
