ISO中心圈(美规)
ISO中心圈系列
| select | ||||||||||||||||||||

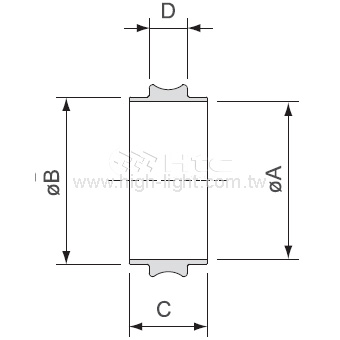

| Model No. | ISO63CRSA | ISO80CRSA | ISO100CRSA | ISO160CRSA | ISO200CRSA | ISO250CRSA | ISO320CRSA | ISO400CRSA | ISO500CRSA | ISO630CRSA | ISO63CRAA | ISO80CRAA | ISO100CRAA | ISO160CRAA | ISO200CRAA | ISO250CRAA | ISO320CRAA | ISO400CRAA | ISO500CRAA | ISO630CRAA |
| Parts No. | 191010410 | 191011410 | 191012410 | 191015410 | 191016410 | 191017410 | 191019410 | 191021410 | 191023410 | 191025410 | 191010110 | 191011110 | 191012110 | 191015110 | 191016110 | 191017110 | 191019110 | 191021110 | 191023110 | 191025110 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al |
| A | 67 | 80 | 99 | 150 | 210 | 257.5 | 312 | 394 | 494 | 644.5 | 67 | 80 | 99 | 150 | 210 | 257.5 | 312 | 394 | 494 | 644.5 |
| B | 69.6 | 82.6 | 101.6 | 152.6 | 212.6 | 260.4 | 317.3 | 399.2 | 500.2 | 650.5 | 69.6 | 82.6 | 101.6 | 152.6 | 212.6 | 260.4 | 317.3 | 399.2 | 500.2 | 650.5 |
| C | 8 | 8 | 8 | 8 | 8 | 8 | 12 | 12 | 12 | 12 | 8 | 8 | 8 | 8 | 8 | 8 | 12 | 12 | 12 | 12 |
| D | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 5.6 | 5.6 | 5.6 | 5.6 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 5.6 | 5.6 | 5.6 | 5.6 |
| Select | Model No. | Parts No. | Material | A | B | C | D |
| ISO63CRSA | 191010410 | 304 S.S. | 67 | 69.6 | 8 | 3.9 | |
| ISO80CRSA | 191011410 | 304 S.S. | 80 | 82.6 | 8 | 3.9 | |
| ISO100CRSA | 191012410 | 304 S.S. | 99 | 101.6 | 8 | 3.9 | |
| ISO160CRSA | 191015410 | 304 S.S. | 150 | 152.6 | 8 | 3.9 | |
| ISO200CRSA | 191016410 | 304 S.S. | 210 | 212.6 | 8 | 3.9 | |
| ISO250CRSA | 191017410 | 304 S.S. | 257.5 | 260.4 | 8 | 3.9 | |
| ISO320CRSA | 191019410 | 304 S.S. | 312 | 317.3 | 12 | 5.6 | |
| ISO400CRSA | 191021410 | 304 S.S. | 394 | 399.2 | 12 | 5.6 | |
| ISO500CRSA | 191023410 | 304 S.S. | 494 | 500.2 | 12 | 5.6 | |
| ISO630CRSA | 191025410 | 304 S.S. | 644.5 | 650.5 | 12 | 5.6 | |
| ISO63CRAA | 191010110 | Al | 67 | 69.6 | 8 | 3.9 | |
| ISO80CRAA | 191011110 | Al | 80 | 82.6 | 8 | 3.9 | |
| ISO100CRAA | 191012110 | Al | 99 | 101.6 | 8 | 3.9 | |
| ISO160CRAA | 191015110 | Al | 150 | 152.6 | 8 | 3.9 | |
| ISO200CRAA | 191016110 | Al | 210 | 212.6 | 8 | 3.9 | |
| ISO250CRAA | 191017110 | Al | 257.5 | 260.4 | 8 | 3.9 | |
| ISO320CRAA | 191019110 | Al | 312 | 317.3 | 12 | 5.6 | |
| ISO400CRAA | 191021110 | Al | 394 | 399.2 | 12 | 5.6 | |
| ISO500CRAA | 191023110 | Al | 494 | 500.2 | 12 | 5.6 | |
| ISO630CRAA | 191025110 | Al | 644.5 | 650.5 | 12 | 5.6 |
