ISO中心圈(美规)加O'Ring(NBR)
ISO中心圈系列
select | ||||||||||||||||||||
Model No. | ISO63CRNSA | ISO80CRNSA | ISO100CRNSA | ISO160CRNSA | ISO200CRNSA | ISO250CRNSA | ISO320CRNSA | ISO400CRNSA | ISO500CRNSA | ISO630CRNSA | ISO63CRNAA | ISO80CRNAA | ISO100CRNAA | ISO160CRNAA | ISO200CRNAA | ISO250CRNAA | ISO320CRNAA | ISO400CRNAA | ISO500CRNAA | ISO630CRNAA |
Parts No. | 191310412 | 191311412 | 191312412 | 191315412 | 191316412 | 191317412 | 191319412 | 191321412 | 191323412 | 191325412 | 191310112 | 191311112 | 191312112 | 191315112 | 191316112 | 191317112 | 191319112 | 191321112 | 191323112 | 191325112 |

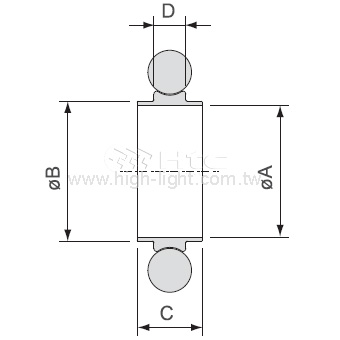

A | 67 | 80 | 99 | 150 | 210 | 257.5 | 312 | 394 | 494 | 644.5 | 67 | 80 | 99 | 150 | 210 | 257.5 | 312 | 394 | 494 | 644.5 |
B | 69.6 | 82.6 | 101.6 | 152.6 | 212.6 | 260.4 | 317.3 | 399.2 | 500.2 | 650.5 | 69.6 | 82.6 | 101.6 | 152.6 | 212.6 | 260.4 | 317.3 | 399.2 | 500.2 | 650.5 |
C | 8 | 8 | 8 | 8 | 8 | 8 | 12 | 12 | 12 | 12 | 8 | 8 | 8 | 8 | 8 | 8 | 12 | 12 | 12 | 12 |
D | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 5.6 | 5.6 | 5.6 | 5.6 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 5.6 | 5.6 | 5.6 | 5.6 |
Material-C/R | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al |
Material-O'Ring | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR |
O'Ring Size | AS-337 | AS-341 | AS-347 | AS-362 | AS-371 | AS-378 | AS-454 | AS-461 | AS-469 | AS-475 | AS-337 | AS-341 | AS-347 | AS-362 | AS-371 | AS-378 | AS-454 | AS-461 | AS-469 | AS-475 |
Select | Model No. | Parts No. | A | B | C | D | Material-C/R | Material-O'Ring | O'Ring Size |
ISO63CRNSA | 191310412 | 67 | 69.6 | 8 | 3.9 | 304 S.S. | NBR | AS-337 | |
ISO80CRNSA | 191311412 | 80 | 82.6 | 8 | 3.9 | 304 S.S. | NBR | AS-341 | |
ISO100CRNSA | 191312412 | 99 | 101.6 | 8 | 3.9 | 304 S.S. | NBR | AS-347 | |
ISO160CRNSA | 191315412 | 150 | 152.6 | 8 | 3.9 | 304 S.S. | NBR | AS-362 | |
ISO200CRNSA | 191316412 | 210 | 212.6 | 8 | 3.9 | 304 S.S. | NBR | AS-371 | |
ISO250CRNSA | 191317412 | 257.5 | 260.4 | 8 | 3.9 | 304 S.S. | NBR | AS-378 | |
ISO320CRNSA | 191319412 | 312 | 317.3 | 12 | 5.6 | 304 S.S. | NBR | AS-454 | |
ISO400CRNSA | 191321412 | 394 | 399.2 | 12 | 5.6 | 304 S.S. | NBR | AS-461 | |
ISO500CRNSA | 191323412 | 494 | 500.2 | 12 | 5.6 | 304 S.S. | NBR | AS-469 | |
ISO630CRNSA | 191325412 | 644.5 | 650.5 | 12 | 5.6 | 304 S.S. | NBR | AS-475 | |
ISO63CRNAA | 191310112 | 67 | 69.6 | 8 | 3.9 | Al | NBR | AS-337 | |
ISO80CRNAA | 191311112 | 80 | 82.6 | 8 | 3.9 | Al | NBR | AS-341 | |
ISO100CRNAA | 191312112 | 99 | 101.6 | 8 | 3.9 | Al | NBR | AS-347 | |
ISO160CRNAA | 191315112 | 150 | 152.6 | 8 | 3.9 | Al | NBR | AS-362 | |
ISO200CRNAA | 191316112 | 210 | 212.6 | 8 | 3.9 | Al | NBR | AS-371 | |
ISO250CRNAA | 191317112 | 257.5 | 260.4 | 8 | 3.9 | Al | NBR | AS-378 | |
ISO320CRNAA | 191319112 | 312 | 317.3 | 12 | 5.6 | Al | NBR | AS-454 | |
ISO400CRNAA | 191321112 | 394 | 399.2 | 12 | 5.6 | Al | NBR | AS-461 | |
ISO500CRNAA | 191323112 | 494 | 500.2 | 12 | 5.6 | Al | NBR | AS-469 | |
ISO630CRNAA | 191325112 | 644.5 | 650.5 | 12 | 5.6 | Al | NBR | AS-475 |
