ISO中心圈(欧规)加O'Ring(Viton)
ISO中心圈系列
| select | ||||||||||||||||||||

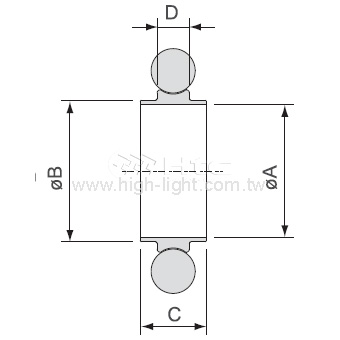

| Model No. | ISO63CRVSE | ISO80CRVSE | ISO100CRVSE | ISO160CRVSE | ISO200CRVSE | ISO250CRVSE | ISO320CRVSE | ISO400CRVSE | ISO500CRVSE | ISO630CRVSE | ISO63CRVAE | ISO80CRVAE | ISO100CRVAE | ISO160CRVAE | ISO200CRVAE | ISO250CRVAE | ISO320CRVAE | ISO400CRVAE | ISO500CRVAE | ISO630CRVAE |
| Parts No. | 191110421 | 191111421 | 191112421 | 191115421 | 191116421 | 191117421 | 191119421 | 191121421 | 191123421 | 191125421 | 191110121 | 191111121 | 191112121 | 191115121 | 191116121 | 191117121 | 191119121 | 191121121 | 191123121 | 191125121 |
| A | 68 | 81 | 100 | 148 | 210 | 257.5 | 312 | 394 | 494 | 644.5 | 68 | 81 | 100 | 148 | 210 | 257.5 | 312 | 394 | 494 | 644.5 |
| B | 70 | 82.6 | 102 | 153 | 213 | 261 | 318 | 400 | 501 | 650.5 | 70 | 82.6 | 102 | 153 | 213 | 261 | 318 | 400 | 501 | 650.5 |
| C | 8 | 8 | 8 | 8 | 8 | 8 | 12 | 12 | 12 | 12 | 8 | 8 | 8 | 8 | 8 | 8 | 12 | 12 | 12 | 12 |
| D | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 5.6 | 5.6 | 5.6 | 5.6 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 5.6 | 5.6 | 5.6 | 5.6 |
| Material-C/R | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al |
| Material-O'Ring | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton |
| O'Ring Size | AS-337 | AS-341 | AS-347 | AS-362 | AS-371 | AS-378 | AS-454 | AS-461 | AS-469 | AS-475 | AS-337 | AS-341 | AS-347 | AS-362 | AS-371 | AS-378 | AS-454 | AS-461 | AS-469 | AS-475 |
| Select | Model No. | Parts No. | A | B | C | D | Material-C/R | Material-O'Ring | O'Ring Size |
| ISO63CRVSE | 191110421 | 68 | 70 | 8 | 3.9 | 304 S.S. | Viton | AS-337 | |
| ISO80CRVSE | 191111421 | 81 | 82.6 | 8 | 3.9 | 304 S.S. | Viton | AS-341 | |
| ISO100CRVSE | 191112421 | 100 | 102 | 8 | 3.9 | 304 S.S. | Viton | AS-347 | |
| ISO160CRVSE | 191115421 | 148 | 153 | 8 | 3.9 | 304 S.S. | Viton | AS-362 | |
| ISO200CRVSE | 191116421 | 210 | 213 | 8 | 3.9 | 304 S.S. | Viton | AS-371 | |
| ISO250CRVSE | 191117421 | 257.5 | 261 | 8 | 3.9 | 304 S.S. | Viton | AS-378 | |
| ISO320CRVSE | 191119421 | 312 | 318 | 12 | 5.6 | 304 S.S. | Viton | AS-454 | |
| ISO400CRVSE | 191121421 | 394 | 400 | 12 | 5.6 | 304 S.S. | Viton | AS-461 | |
| ISO500CRVSE | 191123421 | 494 | 501 | 12 | 5.6 | 304 S.S. | Viton | AS-469 | |
| ISO630CRVSE | 191125421 | 644.5 | 650.5 | 12 | 5.6 | 304 S.S. | Viton | AS-475 | |
| ISO63CRVAE | 191110121 | 68 | 70 | 8 | 3.9 | Al | Viton | AS-337 | |
| ISO80CRVAE | 191111121 | 81 | 82.6 | 8 | 3.9 | Al | Viton | AS-341 | |
| ISO100CRVAE | 191112121 | 100 | 102 | 8 | 3.9 | Al | Viton | AS-347 | |
| ISO160CRVAE | 191115121 | 148 | 153 | 8 | 3.9 | Al | Viton | AS-362 | |
| ISO200CRVAE | 191116121 | 210 | 213 | 8 | 3.9 | Al | Viton | AS-371 | |
| ISO250CRVAE | 191117121 | 257.5 | 261 | 8 | 3.9 | Al | Viton | AS-378 | |
| ISO320CRVAE | 191119121 | 312 | 318 | 12 | 5.6 | Al | Viton | AS-454 | |
| ISO400CRVAE | 191121121 | 394 | 400 | 12 | 5.6 | Al | Viton | AS-461 | |
| ISO500CRVAE | 191123121 | 494 | 501 | 12 | 5.6 | Al | Viton | AS-469 | |
| ISO630CRVAE | 191125121 | 644.5 | 650.5 | 12 | 5.6 | Al | Viton | AS-475 |
