ISO中心圈(美规)加O'Ring(Viton) 与外圈
ISO中心圈系列
| select | ||||||||||||||||||||
| Model No. | ISO63OCRVSA | ISO80OCRVSA | ISO100OCRVSA | ISO160OCRVSA | ISO200OCRVSA | ISO250OCRVSA | ISO320OCRVSA | ISO400OCRVSA | ISO500OCRVSA | ISO630OCRVSA | ISO63OCRVAA | ISO80OCRVAA | ISO100OCRVAA | ISO160OCRVAA | ISO200OCRVAA | ISO250OCRVAA | ISO320OCRVAA | ISO400OCRVAA | ISO500OCRVAA | ISO630OCRVAA |
| Parts No. | 192110411 | 192111411 | 192112411 | 192115411 | 192116411 | 192117411 | 192119411 | 192121411 | 192123411 | 192125411 | 192110111 | 192111111 | 192112111 | 192115111 | 192116111 | 192117111 | 192119111 | 192121111 | 192123111 | 192125111 |

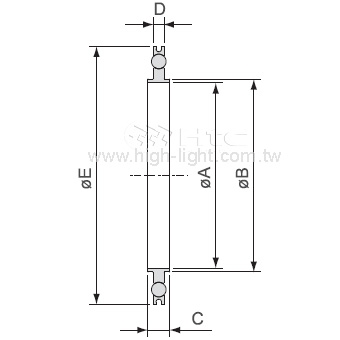

| A | 67 | 80 | 99 | 150 | 210 | 257.5 | 312 | 394 | 494 | 644.5 | 67 | 80 | 99 | 150 | 210 | 257.5 | 312 | 394 | 494 | 644.5 |
| B | 69.6 | 82.6 | 101.6 | 152.6 | 212.6 | 260.4 | 317.3 | 399.2 | 500.2 | 650.5 | 69.6 | 82.6 | 101.6 | 152.6 | 212.6 | 260.4 | 317.3 | 399.2 | 500.2 | 650.5 |
| C | 8 | 8 | 8 | 8 | 8 | 8 | 12 | 12 | 12 | 12 | 8 | 8 | 8 | 8 | 8 | 8 | 12 | 12 | 12 | 12 |
| D | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 5.6 | 5.6 | 5.6 | 5.6 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 5.6 | 5.6 | 5.6 | 5.6 |
| E | 94 | 109 | 128 | 179 | 238 | 287 | 344 | 446 | 535 | 684.8 | 94 | 109 | 128 | 179 | 238 | 287 | 344 | 446 | 535 | 684.8 |
| Material-C/R | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al |
| Material-O/R | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al |
| Material-O'Ring | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton |
| O'Ring Size | AS-337 | AS-341 | AS-347 | AS-362 | AS-371 | AS-378 | AS-454 | AS-461 | AS-469 | AS-475 | AS-337 | AS-341 | AS-347 | AS-362 | AS-371 | AS-378 | AS-454 | AS-461 | AS-469 | AS-475 |
| Select | Model No. | Parts No. | A | B | C | D | E | Material-C/R | Material-O/R | Material-O'Ring | O'Ring Size |
| ISO63OCRVSA | 192110411 | 67 | 69.6 | 8 | 3.9 | 94 | 304 S.S. | Al | Viton | AS-337 | |
| ISO80OCRVSA | 192111411 | 80 | 82.6 | 8 | 3.9 | 109 | 304 S.S. | Al | Viton | AS-341 | |
| ISO100OCRVSA | 192112411 | 99 | 101.6 | 8 | 3.9 | 128 | 304 S.S. | Al | Viton | AS-347 | |
| ISO160OCRVSA | 192115411 | 150 | 152.6 | 8 | 3.9 | 179 | 304 S.S. | Al | Viton | AS-362 | |
| ISO200OCRVSA | 192116411 | 210 | 212.6 | 8 | 3.9 | 238 | 304 S.S. | Al | Viton | AS-371 | |
| ISO250OCRVSA | 192117411 | 257.5 | 260.4 | 8 | 3.9 | 287 | 304 S.S. | Al | Viton | AS-378 | |
| ISO320OCRVSA | 192119411 | 312 | 317.3 | 12 | 5.6 | 344 | 304 S.S. | Al | Viton | AS-454 | |
| ISO400OCRVSA | 192121411 | 394 | 399.2 | 12 | 5.6 | 446 | 304 S.S. | Al | Viton | AS-461 | |
| ISO500OCRVSA | 192123411 | 494 | 500.2 | 12 | 5.6 | 535 | 304 S.S. | Al | Viton | AS-469 | |
| ISO630OCRVSA | 192125411 | 644.5 | 650.5 | 12 | 5.6 | 684.8 | 304 S.S. | Al | Viton | AS-475 | |
| ISO63OCRVAA | 192110111 | 67 | 69.6 | 8 | 3.9 | 94 | Al | Al | Viton | AS-337 | |
| ISO80OCRVAA | 192111111 | 80 | 82.6 | 8 | 3.9 | 109 | Al | Al | Viton | AS-341 | |
| ISO100OCRVAA | 192112111 | 99 | 101.6 | 8 | 3.9 | 128 | Al | Al | Viton | AS-347 | |
| ISO160OCRVAA | 192115111 | 150 | 152.6 | 8 | 3.9 | 179 | Al | Al | Viton | AS-362 | |
| ISO200OCRVAA | 192116111 | 210 | 212.6 | 8 | 3.9 | 238 | Al | Al | Viton | AS-371 | |
| ISO250OCRVAA | 192117111 | 257.5 | 260.4 | 8 | 3.9 | 287 | Al | Al | Viton | AS-378 | |
| ISO320OCRVAA | 192119111 | 312 | 317.3 | 12 | 5.6 | 344 | Al | Al | Viton | AS-454 | |
| ISO400OCRVAA | 192121111 | 394 | 399.2 | 12 | 5.6 | 446 | Al | Al | Viton | AS-461 | |
| ISO500OCRVAA | 192123111 | 494 | 500.2 | 12 | 5.6 | 535 | Al | Al | Viton | AS-469 | |
| ISO630OCRVAA | 192125111 | 644.5 | 650.5 | 12 | 5.6 | 684.8 | Al | Al | Viton | AS-475 |
