ISO中心圈(欧规)加O'Ring(Viton) 与外圈
ISO中心圈系列

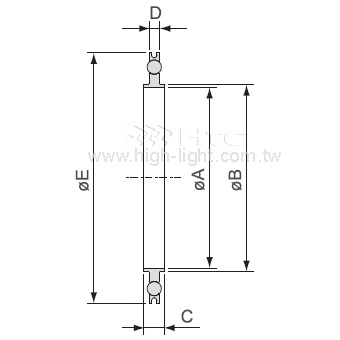

| select | ||||||||||||||||||||
| Model No. | ISO63OCRVSE | ISO80OCRVSE | ISO100OCRVSE | ISO160OCRVSE | ISO200OCRVSE | ISO250OCRVSE | ISO320OCRVSE | ISO400OCRVSE | ISO500OCRVSE | ISO630OCRVSE | ISO63OCRVAE | ISO80OCRVAE | ISO100OCRVAE | ISO160OCRVAE | ISO200OCRVAE | ISO250OCRVAE | ISO320OCRVAE | ISO400OCRVAE | ISO500OCRVAE | ISO630OCRVAE |
| Parts No. | 192110421 | 192111421 | 192112421 | 192115421 | 192116421 | 192117421 | 192119421 | 192121421 | 192123421 | 192125421 | 192110121 | 192111121 | 192112121 | 192115121 | 192116121 | 192117121 | 192119121 | 192121121 | 192123121 | 192125121 |
| A | 68 | 81 | 100 | 148 | 210 | 257.5 | 312 | 394 | 494 | 644.5 | 68 | 81 | 100 | 148 | 210 | 257.5 | 312 | 394 | 494 | 644.5 |
| B | 70 | 82.6 | 102 | 153 | 213 | 261 | 318 | 400 | 501 | 650.5 | 70 | 82.6 | 102 | 153 | 213 | 261 | 318 | 400 | 501 | 650.5 |
| C | 8 | 8 | 8 | 8 | 8 | 8 | 12 | 12 | 12 | 12 | 8 | 8 | 8 | 8 | 8 | 8 | 12 | 12 | 12 | 12 |
| D | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 5.6 | 5.6 | 5.6 | 5.6 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 5.6 | 5.6 | 5.6 | 5.6 |
| E | 94 | 109 | 128 | 179 | 238 | 287 | 344 | 446 | 535 | 684.8 | 94 | 109 | 128 | 179 | 238 | 287 | 344 | 446 | 535 | 684.8 |
| Material-C/R | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al |
| Material-O/R | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al |
| Material-O'Ring | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton |
| O'Ring Size | AS-337 | AS-341 | AS-347 | AS-362 | AS-371 | AS-378 | AS-454 | AS-461 | AS-469 | AS-475 | AS-337 | AS-341 | AS-347 | AS-362 | AS-371 | AS-378 | AS-454 | AS-461 | AS-469 | AS-475 |
| Select | Model No. | Parts No. | A | B | C | D | E | Material-C/R | Material-O/R | Material-O'Ring | O'Ring Size |
| ISO63OCRVSE | 192110421 | 68 | 70 | 8 | 3.9 | 94 | 304 S.S. | Al | Viton | AS-337 | |
| ISO80OCRVSE | 192111421 | 81 | 82.6 | 8 | 3.9 | 109 | 304 S.S. | Al | Viton | AS-341 | |
| ISO100OCRVSE | 192112421 | 100 | 102 | 8 | 3.9 | 128 | 304 S.S. | Al | Viton | AS-347 | |
| ISO160OCRVSE | 192115421 | 148 | 153 | 8 | 3.9 | 179 | 304 S.S. | Al | Viton | AS-362 | |
| ISO200OCRVSE | 192116421 | 210 | 213 | 8 | 3.9 | 238 | 304 S.S. | Al | Viton | AS-371 | |
| ISO250OCRVSE | 192117421 | 257.5 | 261 | 8 | 3.9 | 287 | 304 S.S. | Al | Viton | AS-378 | |
| ISO320OCRVSE | 192119421 | 312 | 318 | 12 | 5.6 | 344 | 304 S.S. | Al | Viton | AS-454 | |
| ISO400OCRVSE | 192121421 | 394 | 400 | 12 | 5.6 | 446 | 304 S.S. | Al | Viton | AS-461 | |
| ISO500OCRVSE | 192123421 | 494 | 501 | 12 | 5.6 | 535 | 304 S.S. | Al | Viton | AS-469 | |
| ISO630OCRVSE | 192125421 | 644.5 | 650.5 | 12 | 5.6 | 684.8 | 304 S.S. | Al | Viton | AS-475 | |
| ISO63OCRVAE | 192110121 | 68 | 70 | 8 | 3.9 | 94 | Al | Al | Viton | AS-337 | |
| ISO80OCRVAE | 192111121 | 81 | 82.6 | 8 | 3.9 | 109 | Al | Al | Viton | AS-341 | |
| ISO100OCRVAE | 192112121 | 100 | 102 | 8 | 3.9 | 128 | Al | Al | Viton | AS-347 | |
| ISO160OCRVAE | 192115121 | 148 | 153 | 8 | 3.9 | 179 | Al | Al | Viton | AS-362 | |
| ISO200OCRVAE | 192116121 | 210 | 213 | 8 | 3.9 | 238 | Al | Al | Viton | AS-371 | |
| ISO250OCRVAE | 192117121 | 257.5 | 261 | 8 | 3.9 | 287 | Al | Al | Viton | AS-378 | |
| ISO320OCRVAE | 192119121 | 312 | 318 | 12 | 5.6 | 344 | Al | Al | Viton | AS-454 | |
| ISO400OCRVAE | 192121121 | 394 | 400 | 12 | 5.6 | 446 | Al | Al | Viton | AS-461 | |
| ISO500OCRVAE | 192123121 | 494 | 501 | 12 | 5.6 | 535 | Al | Al | Viton | AS-469 | |
| ISO630OCRVAE | 192125121 | 644.5 | 650.5 | 12 | 5.6 | 684.8 | Al | Al | Viton | AS-475 |
