ISO中心圈(欧规)加O'Ring(NBR)
ISO中心圈系列
| select | ||||||||||||||||||||
| Model No. | ISO63CRNSE | ISO80CRNSE | ISO100CRNSE | ISO160CRNSE | ISO200CRNSE | ISO250CRNSE | ISO320CRNSE | ISO400CRNSE | ISO500CRNSE | ISO630CRMSE | ISO63CRNAE | ISO80CRNAE | ISO100CRNAE | ISO160CRNAE | ISO200CRNAE | ISO250CRNAE | ISO320CRNAE | ISO400CRNAE | ISO500CRNAE | ISO630CRNAE |
| Parts No. | 191310422 | 191311422 | 191312422 | 191315422 | 191316422 | 191317422 | 191319422 | 191321422 | 191323422 | 191325422 | 191310122 | 191311122 | 191312122 | 191315122 | 191316122 | 191317122 | 191319122 | 191321122 | 191323122 | 191325122 |

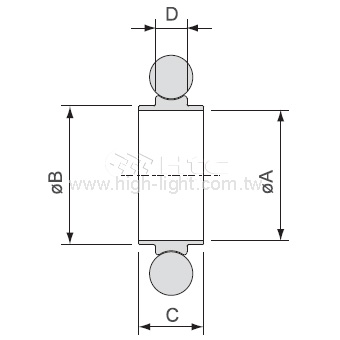

| A | 68 | 81 | 100 | 148 | 210 | 257.5 | 312 | 394 | 494 | 644.5 | 68 | 81 | 100 | 148 | 210 | 257.5 | 312 | 394 | 494 | 644.5 |
| B | 70 | 82.6 | 102 | 153 | 213 | 261 | 318 | 400 | 501 | 650.5 | 70 | 82.6 | 102 | 153 | 213 | 261 | 318 | 400 | 501 | 650.5 |
| C | 8 | 8 | 8 | 8 | 8 | 8 | 12 | 12 | 12 | 12 | 8 | 8 | 8 | 8 | 8 | 8 | 12 | 12 | 12 | 12 |
| D | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 5.6 | 5.6 | 5.6 | 5.6 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 5.6 | 5.6 | 5.6 | 5.6 |
| Material-C/R | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | Al | Al | Al | Al | Al | Al | Al | Al | Al | Al |
| Material-O'Ring | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR | NBR |
| O'Ring Size | AS-337 | AS-341 | AS-347 | AS-362 | AS-371 | AS-378 | AS-454 | AS-461 | AS-469 | AS-475 | AS-337 | AS-341 | AS-347 | AS-362 | AS-371 | AS-378 | AS-454 | AS-461 | AS-469 | AS-475 |
| Select | Model No. | Parts No. | A | B | C | D | Material-C/R | Material-O'Ring | O'Ring Size |
| ISO63CRNSE | 191310422 | 68 | 70 | 8 | 3.9 | 304 S.S. | NBR | AS-337 | |
| ISO80CRNSE | 191311422 | 81 | 82.6 | 8 | 3.9 | 304 S.S. | NBR | AS-341 | |
| ISO100CRNSE | 191312422 | 100 | 102 | 8 | 3.9 | 304 S.S. | NBR | AS-347 | |
| ISO160CRNSE | 191315422 | 148 | 153 | 8 | 3.9 | 304 S.S. | NBR | AS-362 | |
| ISO200CRNSE | 191316422 | 210 | 213 | 8 | 3.9 | 304 S.S. | NBR | AS-371 | |
| ISO250CRNSE | 191317422 | 257.5 | 261 | 8 | 3.9 | 304 S.S. | NBR | AS-378 | |
| ISO320CRNSE | 191319422 | 312 | 318 | 12 | 5.6 | 304 S.S. | NBR | AS-454 | |
| ISO400CRNSE | 191321422 | 394 | 400 | 12 | 5.6 | 304 S.S. | NBR | AS-461 | |
| ISO500CRNSE | 191323422 | 494 | 501 | 12 | 5.6 | 304 S.S. | NBR | AS-469 | |
| ISO630CRMSE | 191325422 | 644.5 | 650.5 | 12 | 5.6 | 304 S.S. | NBR | AS-475 | |
| ISO63CRNAE | 191310122 | 68 | 70 | 8 | 3.9 | Al | NBR | AS-337 | |
| ISO80CRNAE | 191311122 | 81 | 82.6 | 8 | 3.9 | Al | NBR | AS-341 | |
| ISO100CRNAE | 191312122 | 100 | 102 | 8 | 3.9 | Al | NBR | AS-347 | |
| ISO160CRNAE | 191315122 | 148 | 153 | 8 | 3.9 | Al | NBR | AS-362 | |
| ISO200CRNAE | 191316122 | 210 | 213 | 8 | 3.9 | Al | NBR | AS-371 | |
| ISO250CRNAE | 191317122 | 257.5 | 261 | 8 | 3.9 | Al | NBR | AS-378 | |
| ISO320CRNAE | 191319122 | 312 | 318 | 12 | 5.6 | Al | NBR | AS-454 | |
| ISO400CRNAE | 191321122 | 394 | 400 | 12 | 5.6 | Al | NBR | AS-461 | |
| ISO500CRNAE | 191323122 | 494 | 501 | 12 | 5.6 | Al | NBR | AS-469 | |
| ISO630CRNAE | 191325122 | 644.5 | 650.5 | 12 | 5.6 | Al | NBR | AS-475 |
