KF法兰有波纹管(欧规)
手动式真空角阀
| select | ||||

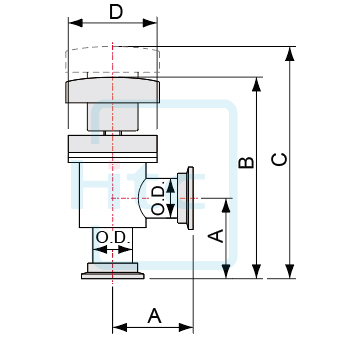

| Model No. | AVB-KF16-M-E | AVB-KF25-M-E | AVB-KF40-M-E | AVB-KF50-M-E |
| Parts No. | 310109010016 | 310111010016 | 310113010016 | 310114010016 |
| A | 40 | 50 | 65 | 70 |
| B | 121.9 | 128.6 | 167.5 | 190.5 |
| C | 141.5 | 148.1 | 200 | 235.5 |
| D | 56.8 | 56.8 | 75.8 | 88.4 |
| O.D. | 19.05 | 25.4 | 38.1 | 50.8 |
| Select | Model No. | Parts No. | A | B | C | D | O.D. |
| AVB-KF16-M-E | 310109010016 | 40 | 121.9 | 141.5 | 56.8 | 19.05 | |
| AVB-KF25-M-E | 310111010016 | 50 | 128.6 | 148.1 | 56.8 | 25.4 | |
| AVB-KF40-M-E | 310113010016 | 65 | 167.5 | 200 | 75.8 | 38.1 | |
| AVB-KF50-M-E | 310114010016 | 70 | 190.5 | 235.5 | 88.4 | 50.8 |
