CF可旋转法兰有波纹管(欧规)
手动式真空角阀

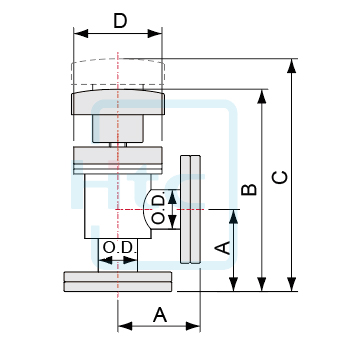

| select | |||
| Model No. | AVB-CR16-M-E | AVB-CR35-M-E | AVB-CR63-M-E |
| Parts No. | 310109030016 | 310113030016 | 310115030016 |
| A | 38 | 63 | 105 |
| B | 119.9 | 165.5 | 241.5 |
| C | 139.5 | 198 | 283.9 |
| D | 56.8 | 75.8 | 99.5 |
| O.D. | 19.05 | 38.1 | 63.5 |
| Select | Model No. | Parts No. | A | B | C | D | O.D. |
| AVB-CR16-M-E | 310109030016 | 38 | 119.9 | 139.5 | 56.8 | 19.05 | |
| AVB-CR35-M-E | 310113030016 | 63 | 165.5 | 198 | 75.8 | 38.1 | |
| AVB-CR63-M-E | 310115030016 | 105 | 241.5 | 283.9 | 99.5 | 63.5 |
