套焊法兰(KF80-160)
KF法兰(NW法兰)
.jpg)
.jpg)
.jpg)
.jpg)
| select | |||

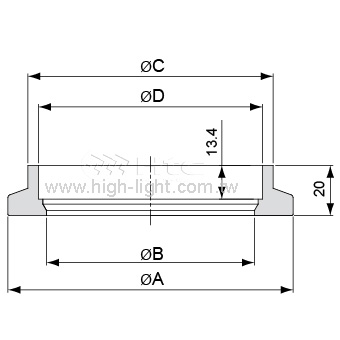

| Model No. | KF80WS | KF100WS | KF160WS |
| Parts No. | 150908AL3 | 150909AN3 | 150912AQ3 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. |
| A | 114 | 134 | 190 |
| B | 83 | 102 | 153 |
| C | 98 | 118 | 174 |
| D | 89.5 | 114.5 | 165.5 |
| Select | Model No. | Parts No. | Material | A | B | C | D |
| KF80WS | 150908AL3 | 304 S.S. | 114 | 83 | 98 | 89.5 | |
| KF100WS | 150909AN3 | 304 S.S. | 134 | 102 | 118 | 114.5 | |
| KF160WS | 150912AQ3 | 304 S.S. | 190 | 153 | 174 | 165.5 |
