对焊法兰(长颈管)
KF法兰(NW法兰)
.jpg)
.jpg)
.jpg)
.jpg)
_D.jpg)
| select | ||||||||||||||||
| Model No. | KF10LHNSA | KF16LHNSA | KF25LHNSA | KF40LHNSA | KF50LHNSA | KF10LHNAA | KF16LHNAA | KF25LHNAA | KF40LHNAA | KF50LHNAA | KF10LHNSE | KF16LHNSE | KF25LHNSE | KF40LHNSE | KF50LHNSE | KF50LHNSJ |
| Parts No. | 150401073 | 150402093 | 150403113 | 150405133 | 150406143 | 150401071 | 150402091 | 150403111 | 150405131 | 150406141 | 150601AB3 | 150602AD3 | 150603AE3 | 150605AG3 | 150606AJ3 | 150806AJ3 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |

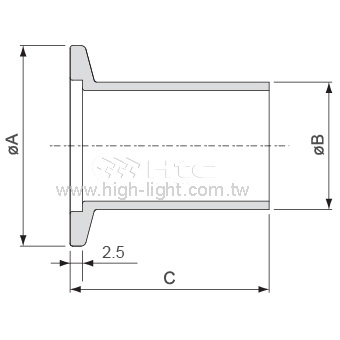

| A | 30 | 30 | 40 | 55 | 75 | 30 | 30 | 40 | 55 | 75 | 30 | 30 | 40 | 55 | 75 | 75 |
| B | 12.7 | 19.05 | 25.4 | 38.1 | 50.8 | 12.7 | 19.05 | 25.4 | 38.1 | 50.8 | 14 | 20 | 28 | 45 | 57 | 60.5 |
| C | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 70 | 70 | 70 | 70 | 70 | 40 |
| Available area | U.S.A. | U.S.A. | U.S.A. | U.S.A. | U.S.A. | U.S.A. | U.S.A. | U.S.A. | U.S.A. | U.S.A. | Europe | Europe | Europe | Europe | Europe | Japan |
| Select | Model No. | Parts No. | Material | A | B | C | Available area |
| KF10LHNSA | 150401073 | 304 S.S. | 30 | 12.7 | 40 | U.S.A. | |
| KF16LHNSA | 150402093 | 304 S.S. | 30 | 19.05 | 40 | U.S.A. | |
| KF25LHNSA | 150403113 | 304 S.S. | 40 | 25.4 | 40 | U.S.A. | |
| KF40LHNSA | 150405133 | 304 S.S. | 55 | 38.1 | 40 | U.S.A. | |
| KF50LHNSA | 150406143 | 304 S.S. | 75 | 50.8 | 40 | U.S.A. | |
| KF10LHNAA | 150401071 | Aluminum | 30 | 12.7 | 40 | U.S.A. | |
| KF16LHNAA | 150402091 | Aluminum | 30 | 19.05 | 40 | U.S.A. | |
| KF25LHNAA | 150403111 | Aluminum | 40 | 25.4 | 40 | U.S.A. | |
| KF40LHNAA | 150405131 | Aluminum | 55 | 38.1 | 40 | U.S.A. | |
| KF50LHNAA | 150406141 | Aluminum | 75 | 50.8 | 40 | U.S.A. | |
| KF10LHNSE | 150601AB3 | 304 S.S. | 30 | 14 | 70 | Europe | |
| KF16LHNSE | 150602AD3 | 304 S.S. | 30 | 20 | 70 | Europe | |
| KF25LHNSE | 150603AE3 | 304 S.S. | 40 | 28 | 70 | Europe | |
| KF40LHNSE | 150605AG3 | 304 S.S. | 55 | 45 | 70 | Europe | |
| KF50LHNSE | 150606AJ3 | 304 S.S. | 75 | 57 | 70 | Europe | |
| KF50LHNSJ | 150806AJ3 | 304 S.S. | 75 | 60.5 | 40 | Japan |
SolidWorks 2D和 3D产品图稿
Available Area : U.S.A.Material : 304 S.S.
| Model No. | KF10LHNSA | KF16LHNSA | KF25LHNSA | KF40LHNSA | KF50LHNSA |
| Parts No. | 150401073 | 150402093 | 150403113 | 150405133 | 150406143 |
| Download Type | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP |
Material : Aluminum
| Model No. | KF10LHNAA | KF16LHNAA | KF25LHNAA | KF40LHNAA | KF50LHNAA |
| Parts No. | 150401071 | 150402091 | 150403111 | 150405131 | 150406141 |
| Download Type | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP |
Available Area : Europe
Material : 304 S.S.
| Model No. | KF10LHNSE | KF16LHNSE | KF25LHNSE | KF40LHNSE | KF50LHNSE |
| Parts No. | 150601AB3 | 150602AD3 | 150603AE3 | 150605AG3 | 150606AJ3 |
| Download Type | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP |
Available Area : Japan
Material : 304 S.S.
| Model No. | KF50LHNSJ |
| Parts No. | 150806AJ3 |
| Download Type | DWG | STEP |
注意：请按【滑鼠快捷】选择【另存新档】或【另存连结为】，需稍等一下即出现存档窗口。
