KF封盖法兰+视窗
KF法兰(NW法兰)
.jpg)
.jpg)
.jpg)
.jpg)
| select | ||||

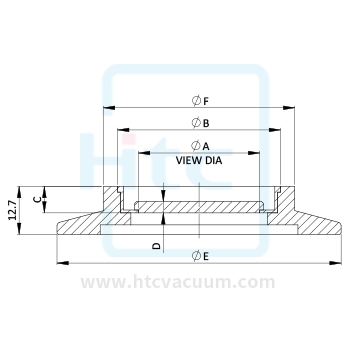

| Model No. | KF16VW | KF25VW | KF40VW | KF50VW |
| Parts No. | 150102009 | 150103009 | 150105009 | 150106009 |
| A | 16 | 16 | 32 | 32 |
| B | 19 | 19 | 43 | 43 |
| C | 8.5 | 8.5 | 8.5 | 7 |
| D | 1.7 | 1.7 | 3 | 3 |
| E | 30 | 40 | 55 | 75 |
| F | 22 | 25.4 | 44.5 | 50.5 |
| Select | Model No. | Parts No. | A | B | C | D | E | F |
| KF16VW | 150102009 | 16 | 19 | 8.5 | 1.7 | 30 | 22 | |
| KF25VW | 150103009 | 16 | 19 | 8.5 | 1.7 | 40 | 25.4 | |
| KF40VW | 150105009 | 32 | 43 | 8.5 | 3 | 55 | 44.5 | |
| KF50VW | 150106009 | 32 | 43 | 7 | 3 | 75 | 50.5 |
