KF空心法兰
KF法兰(NW法兰)
.jpg)
.jpg)
.jpg)
.jpg)
| select | |||||||||

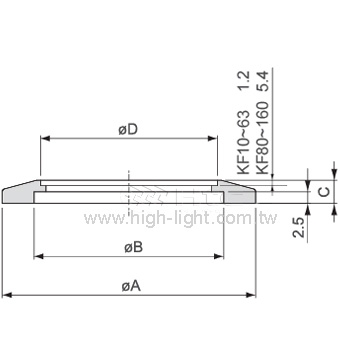

| Model No. | KF10B12 | KF16B19 | KF25B25 | KF40B38 | KF50B51 | KF63B63 | KF80B76 | KF100B102 | KF160B153 |
| Parts No. | 150201073 | 150202093 | 150203113 | 150205133 | 150206143 | 150207153 | 150208163 | 150209183 | 150212203 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
| A | 30 | 30 | 40 | 55 | 75 | 87 | 114 | 134 | 190 |
| B | 12.2 | 17.2 | 26.2 | 41.2 | 52.2 | 70 | 83 | 102 | 153 |
| C | 5 | 5 | 5 | 5 | 5 | 5 | 12 | 12 | 12 |
| D | 12.9 | 19.3 | 25.7 | 38.4 | 51 | 63.7 | 76.8 | 102.2 | 152.9 |
| Select | Model No. | Parts No. | Material | A | B | C | D |
| KF10B12 | 150201073 | 304 S.S. | 30 | 12.2 | 5 | 12.9 | |
| KF16B19 | 150202093 | 304 S.S. | 30 | 17.2 | 5 | 19.3 | |
| KF25B25 | 150203113 | 304 S.S. | 40 | 26.2 | 5 | 25.7 | |
| KF40B38 | 150205133 | 304 S.S. | 55 | 41.2 | 5 | 38.4 | |
| KF50B51 | 150206143 | 304 S.S. | 75 | 52.2 | 5 | 51 | |
| KF63B63 | 150207153 | 304 S.S. | 87 | 70 | 5 | 63.7 | |
| KF80B76 | 150208163 | 304 S.S. | 114 | 83 | 12 | 76.8 | |
| KF100B102 | 150209183 | 304 S.S. | 134 | 102 | 12 | 102.2 | |
| KF160B153 | 150212203 | 304 S.S. | 190 | 153 | 12 | 152.9 |
SolidWorks 2D & 3D 产品图稿
| Model No. | KF10B12 | KF16B19 | KF25B25 | KF40B38 | KF50B51 | KF63B63 | KF80B76 | KF100B102 | KF160B153 |
| Parts No. | 150201073 | 150202093 | 150203113 | 150205133 | 150206143 | 150207153 | 150208163 | 150209183 | 150212203 |
| Download Type | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP |
注意: 请按【鼠标右键】选择【另存新档】或【另存连结为】, 需稍等一下即出现存盘窗口。
