对焊法兰(短颈管)
KF法兰(NW法兰)
.jpg)
.jpg)
.jpg)
.jpg)

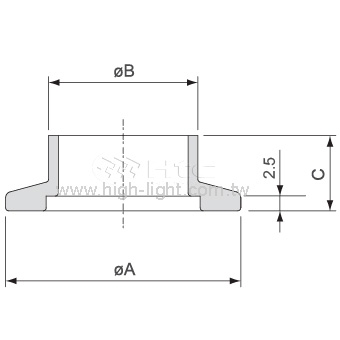

_D.jpg)
| select | |||||||||||||
| Model No. | KF10SHNSA | KF16SHNSA | KF25SHNSA | KF40SHNSA | KF50SHNSA | KF10SHNSE | KF16SHNSE | KF25SHNSE | KF40SHNSE | KF50SHNSE | KF25SHNSJ27 | KF40SHNSJ42 | KF50SHNSJ60 |
| Parts No. | 150301073 | 150302093 | 150303113 | 150305133 | 150306143 | 150501AB3 | 150502AD3 | 150503AE3 | 150505AG3 | 150506AJ3 | 150703AE3 | 150705AG3 | 150706AJ3 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
| A | 30 | 30 | 40 | 55 | 75 | 30 | 30 | 40 | 55 | 75 | 40 | 55 | 75 |
| B | 12.7 | 19.05 | 25.4 | 38.1 | 50.8 | 14 | 20 | 28 | 45 | 57 | 27.2 | 42.7 | 60.5 |
| C | 12.7 | 12.7 | 12.7 | 19.1 | 19.1 | 30 | 30 | 30 | 30 | 30 | 20 | 20 | 20 |
| Available area | U.S.A. | U.S.A. | U.S.A. | U.S.A. | U.S.A. | Europe | Europe | Europe | Europe | Europe | Japan | Japan | Japan |
| Select | Model No. | Parts No. | Material | A | B | C | Available area |
| KF10SHNSA | 150301073 | 304 S.S. | 30 | 12.7 | 12.7 | U.S.A. | |
| KF16SHNSA | 150302093 | 304 S.S. | 30 | 19.05 | 12.7 | U.S.A. | |
| KF25SHNSA | 150303113 | 304 S.S. | 40 | 25.4 | 12.7 | U.S.A. | |
| KF40SHNSA | 150305133 | 304 S.S. | 55 | 38.1 | 19.1 | U.S.A. | |
| KF50SHNSA | 150306143 | 304 S.S. | 75 | 50.8 | 19.1 | U.S.A. | |
| KF10SHNSE | 150501AB3 | 304 S.S. | 30 | 14 | 30 | Europe | |
| KF16SHNSE | 150502AD3 | 304 S.S. | 30 | 20 | 30 | Europe | |
| KF25SHNSE | 150503AE3 | 304 S.S. | 40 | 28 | 30 | Europe | |
| KF40SHNSE | 150505AG3 | 304 S.S. | 55 | 45 | 30 | Europe | |
| KF50SHNSE | 150506AJ3 | 304 S.S. | 75 | 57 | 30 | Europe | |
| KF25SHNSJ27 | 150703AE3 | 304 S.S. | 40 | 27.2 | 20 | Japan | |
| KF40SHNSJ42 | 150705AG3 | 304 S.S. | 55 | 42.7 | 20 | Japan | |
| KF50SHNSJ60 | 150706AJ3 | 304 S.S. | 75 | 60.5 | 20 | Japan |
SolidWorks 2D & 3D 产品图稿
Available area : U.S.A.| Model No. | KF10SHNSA | KF16SHNSA | KF25SHNSA | KF40SHNSA | KF50SHNSA |
| Parts No. | 150301073 | 150302093 | 150303113 | 150305133 | 150306143 |
| Download Type | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP |
Available area : Europe
| Model No. | KF10SHNSE | KF16SHNSE | KF25SHNSE | KF40SHNSE | KF50SHNSE |
| Parts No. | 150501AB3 | 150502AD3 | 150503AE3 | 150505AG3 | 150506AJ3 |
| Download Type | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP |
Available area : Japan
| Model No. | KF25SHNSJ27 | KF40SHNSJ42 | KF50SHNSJ60 |
| Parts No. | 150703AE3 | 150705AG3 | 150706AJ3 |
| Download Type | DWG | STEP | DWG | STEP | DWG | STEP |
注意：请按【滑鼠快捷】选择【另存新档】或【另存连结为】，需稍等一下即出现存档窗口。
