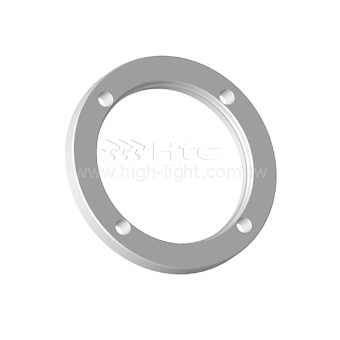

ISO旋转螺环
ISO法兰
| select | |||||||||

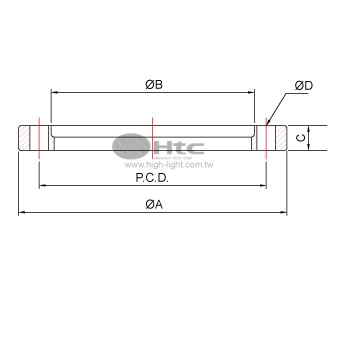

| Model No. | ISO63RBR | ISO80RBR | ISO100RBR | ISO160RBR | ISO200RBR | ISO250RBR | ISO320RBR | ISO400RBR | ISO500RBR |
| Parts No. | 152507073 | 152508083 | 152509093 | 152512123 | 152513133 | 152514143 | 152516163 | 152518183 | 152520203 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
| A | 130 | 145 | 165 | 225 | 285 | 335 | 425 | 510 | 610 |
| B | 98.5 | 113.5 | 133.5 | 185.7 | 245.7 | 295.7 | 375.8 | 458.8 | 558.8 |
| C | 12 | 12 | 12 | 16 | 16 | 16 | 20 | 20 | 20 |
| D*No. | 9*4 | 9*8 | 9*8 | 11*8 | 11*12 | 11*12 | 14*12 | 14*16 | 14*16 |
| P.C.D. | 110 | 125 | 145 | 200 | 260 | 310 | 395 | 480 | 580 |
| Select | Model No. | Parts No. | Material | A | B | C | D*No. | P.C.D. |
| ISO63RBR | 152507073 | 304 S.S. | 130 | 98.5 | 12 | 9*4 | 110 | |
| ISO80RBR | 152508083 | 304 S.S. | 145 | 113.5 | 12 | 9*8 | 125 | |
| ISO100RBR | 152509093 | 304 S.S. | 165 | 133.5 | 12 | 9*8 | 145 | |
| ISO160RBR | 152512123 | 304 S.S. | 225 | 185.7 | 16 | 11*8 | 200 | |
| ISO200RBR | 152513133 | 304 S.S. | 285 | 245.7 | 16 | 11*12 | 260 | |
| ISO250RBR | 152514143 | 304 S.S. | 335 | 295.7 | 16 | 11*12 | 310 | |
| ISO320RBR | 152516163 | 304 S.S. | 425 | 375.8 | 20 | 14*12 | 395 | |
| ISO400RBR | 152518183 | 304 S.S. | 510 | 458.8 | 20 | 14*16 | 480 | |
| ISO500RBR | 152520203 | 304 S.S. | 610 | 558.8 | 20 | 14*16 | 580 |
