ISO对焊法兰
ISO法兰

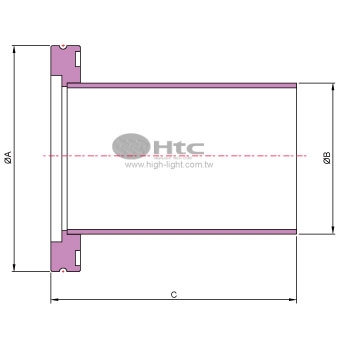

| select | |||||||||
| Model No. | ISO63HN | ISO80HN | ISO100HN | ISO160HN | ISO200HN | ISO250HN | ISO320HN | ISO400HN | ISO500HN |
| Parts No. | 152607153 | 152608163 | 152609183 | 152612203 | 152613213 | 152614223 | 152616233 | 152618253 | 152620273 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
| A | 95 | 110 | 130 | 180 | 240 | 290 | 370 | 450 | 550 |
| B | 63.5 | 76.2 | 101.6 | 152.4 | 203.2 | 254 | 304.8 | 406.8 | 508 |
| C | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Select | Model No. | Parts No. | Material | A | B | C |
| ISO63HN | 152607153 | 304 S.S. | 95 | 63.5 | 100 | |
| ISO80HN | 152608163 | 304 S.S. | 110 | 76.2 | 100 | |
| ISO100HN | 152609183 | 304 S.S. | 130 | 101.6 | 100 | |
| ISO160HN | 152612203 | 304 S.S. | 180 | 152.4 | 100 | |
| ISO200HN | 152613213 | 304 S.S. | 240 | 203.2 | 100 | |
| ISO250HN | 152614223 | 304 S.S. | 290 | 254 | 100 | |
| ISO320HN | 152616233 | 304 S.S. | 370 | 304.8 | 100 | |
| ISO400HN | 152618253 | 304 S.S. | 450 | 406.8 | 100 | |
| ISO500HN | 152620273 | 304 S.S. | 550 | 508 | 100 |
