ISO通孔法兰
ISO法兰
| select | ||||||||||

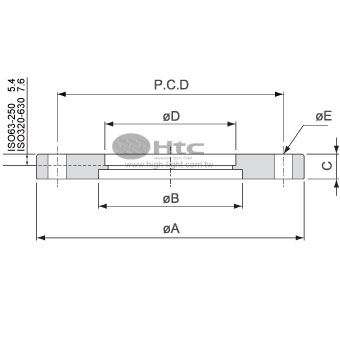

| Model No. | ISO63BF | ISO80BF | ISO100BF | ISO160BF | ISO200BF | ISO250BF | ISO320BF | ISO400BF | ISO500BF | ISO630BF |
| Parts No. | 152307153 | 152308163 | 152309183 | 152312203 | 152313213 | 152314223 | 152316233 | 152318253 | 152320273 | 152322293 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
| A | 130 | 145 | 165 | 225 | 285 | 335 | 425 | 510 | 610 | 750 |
| B | 70 | 83 | 102 | 153 | 213 | 261 | 318 | 400 | 501 | 651 |
| C | 12 | 12 | 12 | 16 | 16 | 16 | 20 | 20 | 20 | 24 |
| D | 63.7 | 76.8 | 102.2 | 152.9 | 203.7 | 254.5 | 305.3 | 406.9 | 508.8 | 610.4 |
| E*No. | 9*4 | 9*8 | 9*8 | 11*8 | 11*12 | 11*12 | 14*12 | 14*16 | 14*16 | 14*20 |
| P.C.D. | 110 | 125 | 145 | 200 | 260 | 310 | 395 | 480 | 580 | 720 |
| Select | Model No. | Parts No. | Material | A | B | C | D | E*No. | P.C.D. |
| ISO63BF | 152307153 | 304 S.S. | 130 | 70 | 12 | 63.7 | 9*4 | 110 | |
| ISO80BF | 152308163 | 304 S.S. | 145 | 83 | 12 | 76.8 | 9*8 | 125 | |
| ISO100BF | 152309183 | 304 S.S. | 165 | 102 | 12 | 102.2 | 9*8 | 145 | |
| ISO160BF | 152312203 | 304 S.S. | 225 | 153 | 16 | 152.9 | 11*8 | 200 | |
| ISO200BF | 152313213 | 304 S.S. | 285 | 213 | 16 | 203.7 | 11*12 | 260 | |
| ISO250BF | 152314223 | 304 S.S. | 335 | 261 | 16 | 254.5 | 11*12 | 310 | |
| ISO320BF | 152316233 | 304 S.S. | 425 | 318 | 20 | 305.3 | 14*12 | 395 | |
| ISO400BF | 152318253 | 304 S.S. | 510 | 400 | 20 | 406.9 | 14*16 | 480 | |
| ISO500BF | 152320273 | 304 S.S. | 610 | 501 | 20 | 508.8 | 14*16 | 580 | |
| ISO630BF | 152322293 | 304 S.S. | 750 | 651 | 24 | 610.4 | 14*20 | 720 |
SolidWorks 2D和 3D产品图稿
| Model No. | ISO63BF | ISO80BF | ISO100BF | ISO160BF | ISO200BF | ISO250BF | ISO320BF | ISO400BF | ISO500BF | |
| Parts No. | 152307153 | 152308163 | 152309183 | 152312203 | 152313213 | 152314223 | 152316233 | 152318253 | 152320273 | |
| Download Type | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP |
注意：请按【鼠标快捷】选择【另存新档】或【另存连结为】，需稍等一下即出现存档窗口。
