ISO通孔法兰(螺栓孔接头)
ISO法兰
| select | ||||||||||

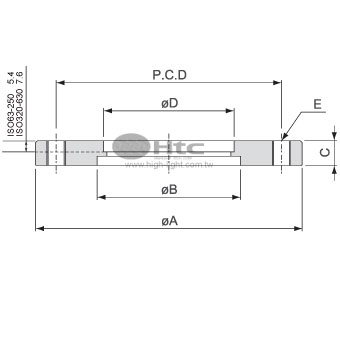

| Model No. | ISO63BFTAP | ISO80BFTAP | ISO100BFTAP | ISO160BFTAP | ISO200BFTAP | ISO250BFTAP | ISO320BFTAP | ISO400BFTAP | ISO500BFTAP | ISO630BFTAP |
| Parts No. | 152407153 | 152408163 | 152409183 | 152412203 | 152413213 | 152414223 | 152416233 | 152418253 | 152420273 | 152422293 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
| A | 130 | 145 | 165 | 225 | 285 | 335 | 425 | 510 | 610 | 750 |
| B | 70 | 83 | 102 | 153 | 213 | 261 | 318 | 400 | 501 | 651 |
| C | 12 | 12 | 12 | 16 | 16 | 16 | 20 | 20 | 20 | 24 |
| D | 63.7 | 76.8 | 102.2 | 152.9 | 203.7 | 254.5 | 305.3 | 406.9 | 508.8 | 610.4 |
| E*No. | M8*4 | M8*8 | M8*8 | M10*8 | M10*12 | M10*12 | M12*12 | M12*16 | M12*16 | M12*20 |
| P.C.D. | 110 | 125 | 145 | 200 | 260 | 310 | 395 | 480 | 580 | 720 |
| Select | Model No. | Parts No. | Material | A | B | C | D | E*No. | P.C.D. |
| ISO63BFTAP | 152407153 | 304 S.S. | 130 | 70 | 12 | 63.7 | M8*4 | 110 | |
| ISO80BFTAP | 152408163 | 304 S.S. | 145 | 83 | 12 | 76.8 | M8*8 | 125 | |
| ISO100BFTAP | 152409183 | 304 S.S. | 165 | 102 | 12 | 102.2 | M8*8 | 145 | |
| ISO160BFTAP | 152412203 | 304 S.S. | 225 | 153 | 16 | 152.9 | M10*8 | 200 | |
| ISO200BFTAP | 152413213 | 304 S.S. | 285 | 213 | 16 | 203.7 | M10*12 | 260 | |
| ISO250BFTAP | 152414223 | 304 S.S. | 335 | 261 | 16 | 254.5 | M10*12 | 310 | |
| ISO320BFTAP | 152416233 | 304 S.S. | 425 | 318 | 20 | 305.3 | M12*12 | 395 | |
| ISO400BFTAP | 152418253 | 304 S.S. | 510 | 400 | 20 | 406.9 | M12*16 | 480 | |
| ISO500BFTAP | 152420273 | 304 S.S. | 610 | 501 | 20 | 508.8 | M12*16 | 580 | |
| ISO630BFTAP | 152422293 | 304 S.S. | 750 | 651 | 24 | 610.4 | M12*20 | 720 |
