ISO 螺栓封盖法兰
ISO法兰
| select | ||||||||||

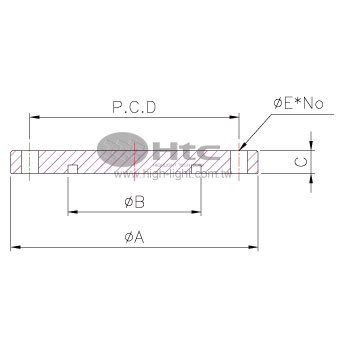

| Model No. | ISO63BB | ISO80BB | ISO100BB | ISO160BB | ISO200BB | ISO250BB | ISO320BB | ISO400BB | ISO500BB | ISO630BB |
| Parts No. | 152307003 | 152308003 | 152309003 | 152312003 | 152313003 | 152314003 | 152316003 | 152318003 | 152320003 | 152322003 |
| Material | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S |
| A | 130 | 145 | 165 | 225 | 285 | 335 | 425 | 510 | 610 | 750 |
| B | 70 | 83 | 102 | 153 | 213 | 261 | 318 | 400 | 501 | 651 |
| C | 12 | 12 | 12 | 16 | 16 | 16 | 20 | 20 | 20 | 24 |
| E*No. | 9*4 | 9*8 | 9*8 | 11*8 | 11*12 | 11*12 | 14*12 | 14*16 | 14*16 | 14*20 |
| P.C.D. | 110 | 125 | 145 | 200 | 260 | 310 | 395 | 480 | 580 | 720 |
| Select | Model No. | Parts No. | Material | A | B | C | E*No. | P.C.D. |
| ISO63BB | 152307003 | 304 S.S | 130 | 70 | 12 | 9*4 | 110 | |
| ISO80BB | 152308003 | 304 S.S | 145 | 83 | 12 | 9*8 | 125 | |
| ISO100BB | 152309003 | 304 S.S | 165 | 102 | 12 | 9*8 | 145 | |
| ISO160BB | 152312003 | 304 S.S | 225 | 153 | 16 | 11*8 | 200 | |
| ISO200BB | 152313003 | 304 S.S | 285 | 213 | 16 | 11*12 | 260 | |
| ISO250BB | 152314003 | 304 S.S | 335 | 261 | 16 | 11*12 | 310 | |
| ISO320BB | 152316003 | 304 S.S | 425 | 318 | 20 | 14*12 | 395 | |
| ISO400BB | 152318003 | 304 S.S | 510 | 400 | 20 | 14*16 | 480 | |
| ISO500BB | 152320003 | 304 S.S | 610 | 501 | 20 | 14*16 | 580 | |
| ISO630BB | 152322003 | 304 S.S | 750 | 651 | 24 | 14*20 | 720 |
SolidWorks 2D和 3D产品图稿
| Model No. | ISO63BB | ISO80BB | ISO100BB | ISO160BB | ISO200BB | ISO250BB | ISO320BB | ISO400BB | ISO500BB | ISO630BB |
| Parts No. | 152307003 | 152308003 | 152309003 | 152312003 | 152313003 | 152314003 | 152316003 | 152318003 | 152320003 | 152322003 |
| Download Type | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP |
注意：请按【鼠标快捷】选择【另存新档】或【另存连结为】，需稍等一下即出现存档窗口。
