L31-14MP - 锥型缩减管接头
管配件
| select | |||||||||||

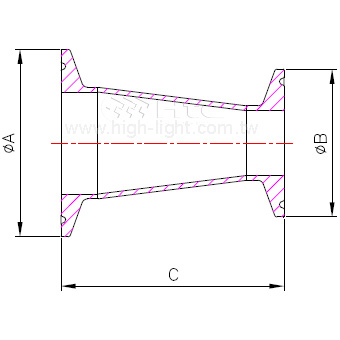

| Model No. | 40-25CR14MP | 50-40CR14MP | 63-40CR14MP | 63-50CR14MP | 80-40CR14MP | 80-50CR14MP | 80-63CR14MP | 100-40CR14MP | 100-50CR14MP | 100-63CR14MP | 100-80CR14MP |
| Parts No. | 1670C05C037L | 1670C06C057L | 1670C07C057L | 1670C07C067L | 1670C08C057L | 1670C08C067L | 1670C08C077L | 1670C09C057L | 1670C09C067L | 1670C09C077L | 1670C09C087L |
| Material | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. |
| A | 50.5 | 64 | 77.5 | 77.5 | 91 | 91 | 91 | 119 | 119 | 119 | 119 |
| B | 50.5 | 50.5 | 50.5 | 64 | 50.5 | 64 | 77.5 | 50.5 | 64 | 77.5 | 91 |
| C | 76.2 | 76.2 | 127 | 76.2 | 177.8 | 127 | 76.2 | 282.5 | 231.7 | 180.9 | 130.1 |
| Flange size | 1.5"x1.0" | 2.0"x1.5" | 2.5"x1.5" | 2.5"x2.0" | 3.0"x1.5" | 3.0"x2.0" | 3.0"x2.5" | 4.0"x1.5" | 4.0"x2.0" | 4.0"x2.5" | 4.0"x3.0" |
| Select | Model No. | Parts No. | Material | A | B | C | Flange size |
| 40-25CR14MP | 1670C05C037L | 316LS.S. | 50.5 | 50.5 | 76.2 | 1.5"x1.0" | |
| 50-40CR14MP | 1670C06C057L | 316LS.S. | 64 | 50.5 | 76.2 | 2.0"x1.5" | |
| 63-40CR14MP | 1670C07C057L | 316LS.S. | 77.5 | 50.5 | 127 | 2.5"x1.5" | |
| 63-50CR14MP | 1670C07C067L | 316LS.S. | 77.5 | 64 | 76.2 | 2.5"x2.0" | |
| 80-40CR14MP | 1670C08C057L | 316LS.S. | 91 | 50.5 | 177.8 | 3.0"x1.5" | |
| 80-50CR14MP | 1670C08C067L | 316LS.S. | 91 | 64 | 127 | 3.0"x2.0" | |
| 80-63CR14MP | 1670C08C077L | 316LS.S. | 91 | 77.5 | 76.2 | 3.0"x2.5" | |
| 100-40CR14MP | 1670C09C057L | 316LS.S. | 119 | 50.5 | 282.5 | 4.0"x1.5" | |
| 100-50CR14MP | 1670C09C067L | 316LS.S. | 119 | 64 | 231.7 | 4.0"x2.0" | |
| 100-63CR14MP | 1670C09C077L | 316LS.S. | 119 | 77.5 | 180.9 | 4.0"x2.5" | |
| 100-80CR14MP | 1670C09C087L | 316LS.S. | 119 | 91 | 130.1 | 4.0"x3.0" |
卫生级管件产品最少询购数量为10个, 不便之处, 敬请见谅!!
