9MP - 卫生级四通管
管配件
| select | ||||||
| Model No. | 9MP25X | 9MP40X | 9MP50X | 9MP63X | 9MP80X | 9MP100X |
| Parts No. | 1667C03C037L | 1667C05C057L | 1667C06C067L | 1667C07C077L | 1667C08C087L | 1667C09C097L |
| Material | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. |

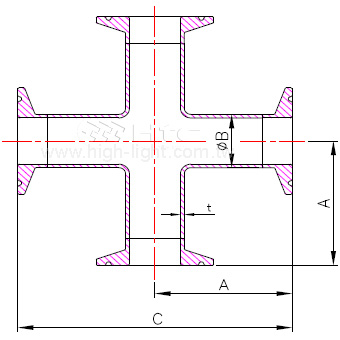

| A | 60.3 | 69.9 | 88.9 | 88.9 | 95.3 | 114.2 |
| B | 25.4 | 38.1 | 50.8 | 63.5 | 76.2 | 101.6 |
| C | 120.6 | 139.8 | 177.8 | 177.8 | 190.6 | 228.4 |
| t | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 2.1 |
| Size | 1.0" | 1.5" | 2.0" | 2.5" | 3.0" | 4.0" |
| Select | Model No. | Parts No. | Material | A | B | C | t | Size |
| 9MP25X | 1667C03C037L | 316LS.S. | 60.3 | 25.4 | 120.6 | 1.65 | 1.0" | |
| 9MP40X | 1667C05C057L | 316LS.S. | 69.9 | 38.1 | 139.8 | 1.65 | 1.5" | |
| 9MP50X | 1667C06C067L | 316LS.S. | 88.9 | 50.8 | 177.8 | 1.65 | 2.0" | |
| 9MP63X | 1667C07C077L | 316LS.S. | 88.9 | 63.5 | 177.8 | 1.65 | 2.5" | |
| 9MP80X | 1667C08C087L | 316LS.S. | 95.3 | 76.2 | 190.6 | 1.65 | 3.0" | |
| 9MP100X | 1667C09C097L | 316LS.S. | 114.2 | 101.6 | 228.4 | 2.1 | 4.0" |
卫生级管件产品最少询购数量为10个, 不便之处, 敬请见谅!!
