L7RMP - 卫生级异径三通管
管配件
| select | |||||||||||

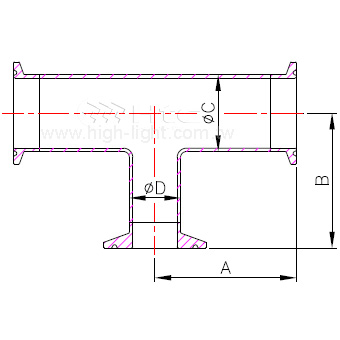

| Model No. | L7RMP40UT25 | L7RMP50UT25 | L7RMP50UT40 | L7RMP63UT40 | L7RMP63UT50 | L7RMP80UT40 | L7RMP80UT50 | L7RMP80UT63 | L7RMP100UT50 | L7RMP100UT63 | L7RMP100UT80 |
| Parts No. | 1669C05C037L | 1669C06C037L | 1669C06C057L | 1669C07C057L | 1669C07C067L | 1669C08C057L | 1669C08C067L | 1669C08C077L | 1669C09C067L | 1669C09C077L | 1669C09C087L |
| Material | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. |
| A | 69.85 | 88.9 | 88.9 | 88.9 | 88.9 | 95.25 | 95.25 | 95.25 | 114.2 | 114.2 | 114.2 |
| B | 66.68 | 73 | 76.2 | 82.55 | 95.25 | 88.9 | 101.6 | 95.25 | 114.3 | 107.95 | 107.95 |
| C | 38.1 | 50.8 | 50.8 | 63.5 | 63.5 | 76.2 | 76.2 | 76.2 | 101.6 | 101.6 | 101.6 |
| D | 25.4 | 25.4 | 38.1 | 38.1 | 50.8 | 38.1 | 50.8 | 63.5 | 50.8 | 63.5 | 76.2 |
| Size | 1.5"x1.0" | 2.0"x1.0" | 2.0"x1.5" | 2.5"x1.5" | 2.5"x2.0" | 3.0"x1.5" | 3.0"x2.0" | 3.0"x2.5" | 4.0"x2.0" | 4.0"x2.5" | 4.0"x3.0" |
| Select | Model No. | Parts No. | Material | A | B | C | D | Size |
| L7RMP40UT25 | 1669C05C037L | 316LS.S. | 69.85 | 66.68 | 38.1 | 25.4 | 1.5"x1.0" | |
| L7RMP50UT25 | 1669C06C037L | 316LS.S. | 88.9 | 73 | 50.8 | 25.4 | 2.0"x1.0" | |
| L7RMP50UT40 | 1669C06C057L | 316LS.S. | 88.9 | 76.2 | 50.8 | 38.1 | 2.0"x1.5" | |
| L7RMP63UT40 | 1669C07C057L | 316LS.S. | 88.9 | 82.55 | 63.5 | 38.1 | 2.5"x1.5" | |
| L7RMP63UT50 | 1669C07C067L | 316LS.S. | 88.9 | 95.25 | 63.5 | 50.8 | 2.5"x2.0" | |
| L7RMP80UT40 | 1669C08C057L | 316LS.S. | 95.25 | 88.9 | 76.2 | 38.1 | 3.0"x1.5" | |
| L7RMP80UT50 | 1669C08C067L | 316LS.S. | 95.25 | 101.6 | 76.2 | 50.8 | 3.0"x2.0" | |
| L7RMP80UT63 | 1669C08C077L | 316LS.S. | 95.25 | 95.25 | 76.2 | 63.5 | 3.0"x2.5" | |
| L7RMP100UT50 | 1669C09C067L | 316LS.S. | 114.2 | 114.3 | 101.6 | 50.8 | 4.0"x2.0" | |
| L7RMP100UT63 | 1669C09C077L | 316LS.S. | 114.2 | 107.95 | 101.6 | 63.5 | 4.0"x2.5" | |
| L7RMP100UT80 | 1669C09C087L | 316LS.S. | 114.2 | 107.95 | 101.6 | 76.2 | 4.0"x3.0" |
卫生级管件产品最少询购数量为10个, 不便之处, 敬请见谅!!
