2CMP - 卫生级90度弯头
管配件
| select | ||||||||

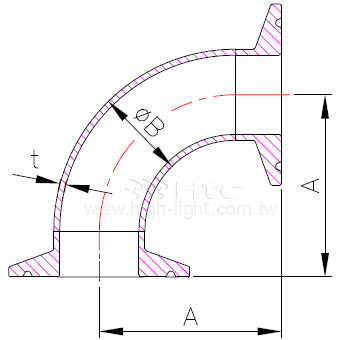

| Model No. | CMP10EL90 | CMP16EL90 | CMP25EL90 | CMP40EL90 | CMP50EL90 | CMP63EL90 | CMP80EL90 | CMP100EL90 |
| Parts No. | 1660C01C017L | 1660C02C027L | 1660C03C037L | 1660C05C057L | 1660C06C067L | 1660C07C077L | 1660C08C087L | 1660C09C097L |
| Material | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. |
| A | 41.3 | 41.3 | 50.8 | 69.9 | 88.9 | 107.95 | 127 | 168.2 |
| B | 12.7 | 19.05 | 25.4 | 38.1 | 50.8 | 63.5 | 76.2 | 101.6 |
| t | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 2.1 |
| Size | 1/2" | 3/4" | 1.0" | 1.5" | 2.0" | 2.5" | 3.0" | 4.0" |
| Select | Model No. | Parts No. | Material | A | B | t | Size |
| CMP10EL90 | 1660C01C017L | 316LS.S. | 41.3 | 12.7 | 1.65 | 1/2" | |
| CMP16EL90 | 1660C02C027L | 316LS.S. | 41.3 | 19.05 | 1.65 | 3/4" | |
| CMP25EL90 | 1660C03C037L | 316LS.S. | 50.8 | 25.4 | 1.65 | 1.0" | |
| CMP40EL90 | 1660C05C057L | 316LS.S. | 69.9 | 38.1 | 1.65 | 1.5" | |
| CMP50EL90 | 1660C06C067L | 316LS.S. | 88.9 | 50.8 | 1.65 | 2.0" | |
| CMP63EL90 | 1660C07C077L | 316LS.S. | 107.95 | 63.5 | 1.65 | 2.5" | |
| CMP80EL90 | 1660C08C087L | 316LS.S. | 127 | 76.2 | 1.65 | 3.0" | |
| CMP100EL90 | 1660C09C097L | 316LS.S. | 168.2 | 101.6 | 2.1 | 4.0" |
卫生级管件产品最少询购数量为10个, 不便之处, 敬请见谅!!
