21MP - 卫生级转接头(公牙)-NPT
管配件
| select | |||||||||||||||||||||||
| Model No. | 10-21MPMNPT13 | 10-21MPMNPT19 | 16-21MPMNPT13 | 16-21MPMNPT19 | 25-21MPMNPT13 | 25-21MPMNPT19 | 25-21MPMNPT25 | 25-21MPMNPT38 | 25-21MPMNPT51 | 40-21MPMNPT19 | 40-21MPMNPT25 | 40-21MPMNPT38 | 40-21MPMNPT51 | 50-21MPMNPT13 | 50-21MPMNPT19 | 50-21MPMNPT25 | 50-21MPMNPT38 | 50-21MPMNPT51 | 63-21MPMNPT38 | 63-21MPMNPT51 | 63-21MPMNPT63 | 80-21MPMNPT76 | 100-21MPMNPT102 |
| Parts No. | 17810114035 | 17810114055 | 17810214035 | 17810214055 | 17810314035 | 17810314055 | 17810314075 | 17810314095 | 17810314125 | 17810514055 | 17810514075 | 17810514095 | 17810514125 | 17810614035 | 17810614055 | 17810614075 | 17810614095 | 17810614125 | 17810714095 | 17810714125 | 17810714135 | 17810814145 | 17810914155 |
| Material | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. |

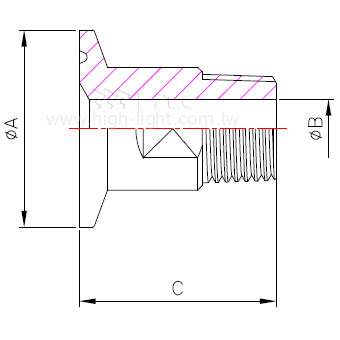

| A | 25 | 25 | 25 | 25 | 50.5 | 50.5 | 50.5 | 50.5 | 50.5 | 50.5 | 50.5 | 50.5 | 50.5 | 64 | 64 | 64 | 64 | 64 | 77.5 | 77.5 | 77.5 | 91 | 119 |
| B | 9.5 | 15.8 | 15.8 | 15.8 | 9.7 | 15.8 | 22.1 | 34.8 | 47.5 | 15.8 | 22.1 | 34.8 | 34.8 | 9.4 | 15.8 | 22.1 | 34.8 | 47.5 | 34.8 | 47.6 | 60.2 | 73 | 97.6 |
| C | 45 | 41.3 | 45 | 45 | 40 | 45 | 50 | 50 | 55 | 45 | 50 | 50 | 55 | 40 | 50 | 50 | 50 | 55 | 50 | 55 | 60 | 70 | 75 |
| Size | 1/2" | 1/2" | 3/4" | 3/4" | 1.0" | 1.0" | 1.0" | 1.0" | 1.0" | 1.5" | 1.5" | 1.5" | 1.5" | 2.0" | 2.0" | 2.0" | 2.0" | 2.0" | 2.5" | 2.5" | 2.5" | 3.0" | 4.0" |
| Tread | 1/2"NPT | 3/4"NPT | 1/2"NPT | 3/4"NPT | 1/2"NPT | 3/4"NPT | 1"NPT | 1-1/2"NPT | 2"NPT | 3/4"NPT | 1"NPT | 1-1/2"NPT | 2"NPT | 1/2"NPT | 3/4"NPT | 1"NPT | 1-1/2"NPT | 2"NPT | 1-1/2"NPT | 2"NPT | 2-1/2"NPT | 3"NPT | 4"NPT |
| Select | Model No. | Parts No. | Material | A | B | C | Size | Tread |
| 10-21MPMNPT13 | 17810114035 | 316LS.S. | 25 | 9.5 | 45 | 1/2" | 1/2"NPT | |
| 10-21MPMNPT19 | 17810114055 | 316LS.S. | 25 | 15.8 | 41.3 | 1/2" | 3/4"NPT | |
| 16-21MPMNPT13 | 17810214035 | 316LS.S. | 25 | 15.8 | 45 | 3/4" | 1/2"NPT | |
| 16-21MPMNPT19 | 17810214055 | 316LS.S. | 25 | 15.8 | 45 | 3/4" | 3/4"NPT | |
| 25-21MPMNPT13 | 17810314035 | 316LS.S. | 50.5 | 9.7 | 40 | 1.0" | 1/2"NPT | |
| 25-21MPMNPT19 | 17810314055 | 316LS.S. | 50.5 | 15.8 | 45 | 1.0" | 3/4"NPT | |
| 25-21MPMNPT25 | 17810314075 | 316LS.S. | 50.5 | 22.1 | 50 | 1.0" | 1"NPT | |
| 25-21MPMNPT38 | 17810314095 | 316LS.S. | 50.5 | 34.8 | 50 | 1.0" | 1-1/2"NPT | |
| 25-21MPMNPT51 | 17810314125 | 316LS.S. | 50.5 | 47.5 | 55 | 1.0" | 2"NPT | |
| 40-21MPMNPT19 | 17810514055 | 316LS.S. | 50.5 | 15.8 | 45 | 1.5" | 3/4"NPT | |
| 40-21MPMNPT25 | 17810514075 | 316LS.S. | 50.5 | 22.1 | 50 | 1.5" | 1"NPT | |
| 40-21MPMNPT38 | 17810514095 | 316LS.S. | 50.5 | 34.8 | 50 | 1.5" | 1-1/2"NPT | |
| 40-21MPMNPT51 | 17810514125 | 316LS.S. | 50.5 | 34.8 | 55 | 1.5" | 2"NPT | |
| 50-21MPMNPT13 | 17810614035 | 316LS.S. | 64 | 9.4 | 40 | 2.0" | 1/2"NPT | |
| 50-21MPMNPT19 | 17810614055 | 316LS.S. | 64 | 15.8 | 50 | 2.0" | 3/4"NPT | |
| 50-21MPMNPT25 | 17810614075 | 316LS.S. | 64 | 22.1 | 50 | 2.0" | 1"NPT | |
| 50-21MPMNPT38 | 17810614095 | 316LS.S. | 64 | 34.8 | 50 | 2.0" | 1-1/2"NPT | |
| 50-21MPMNPT51 | 17810614125 | 316LS.S. | 64 | 47.5 | 55 | 2.0" | 2"NPT | |
| 63-21MPMNPT38 | 17810714095 | 316LS.S. | 77.5 | 34.8 | 50 | 2.5" | 1-1/2"NPT | |
| 63-21MPMNPT51 | 17810714125 | 316LS.S. | 77.5 | 47.6 | 55 | 2.5" | 2"NPT | |
| 63-21MPMNPT63 | 17810714135 | 316LS.S. | 77.5 | 60.2 | 60 | 2.5" | 2-1/2"NPT | |
| 80-21MPMNPT76 | 17810814145 | 316LS.S. | 91 | 73 | 70 | 3.0" | 3"NPT | |
| 100-21MPMNPT102 | 17810914155 | 316LS.S. | 119 | 97.6 | 75 | 4.0" | 4"NPT |
卫生级管件产品最少询购数量为10个, 不便之处, 敬请见谅!!
