排气阀门
破真空阀/粗抽阀 Venting Valve/Pumping Valve
KF-HV-Stainless-steel-angle-valve-single-acting-normally-close.png)
| select | ||||
| Model No. | KF10VVM | KF16VVM | KF25VVM | KF40VVM |
| Parts No. | 340207011 | 340209011 | 340211011 | 340213011 |
| A | 30 | 30 | 40 | 55 |
| B | 41.5 | 41.5 | 41.5 | 41.5 |
| C | 48 | 48 | 48 | 48 |
| Port | KF10 | KF16 | KF25 | KF40 |
| Select | Model No. | Parts No. | A | B | C | Port |
| KF10VVM | 340207011 | 30 | 41.5 | 48 | KF10 | |
| KF16VVM | 340209011 | 30 | 41.5 | 48 | KF16 | |
| KF25VVM | 340211011 | 40 | 41.5 | 48 | KF25 | |
| KF40VVM | 340213011 | 55 | 41.5 | 48 | KF40 |

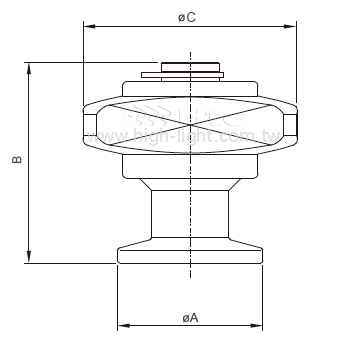

SolidWorks 2D & 3D 产品图稿
| Model No. | KF10VVM | KF16VVM | KF25VVM | KF40VVM |
| Parts No. | 340207011 | 340209011 | 340211011 | 340213011 |
| Download Type | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP |
特色
1. 手动操作的排气阀，用于真空腔体系统, 气体是经过排气阀门进入腔体内, 以调节真空压差
2. 易于操作和维护
3. 平衡真空压差
技术资料
- 法兰接口: KF(NW)
- 可安装角度:任何
- 阀门完全开启: 2轮
- 排气耗时(50L): 14 秒
- 使用压力范围: 1×10-8 torr to 760 torr
- 漏率: 1x10-9 torr.l/s
- 阀门本体: SUS 304
- 材质: SUS 304
- 垫圈: Teflon
- O-ring: Viton
- 螺旋盖: Aluminum
- 重量: 0.1kg
