KF高真空高寿命不锈钢角阀-单作用、常闭
破真空阀/粗抽阀 Venting Valve/Pumping Valve
KF-HV-Stainless-steel-angle-valve-single-acting-normally-close.png)

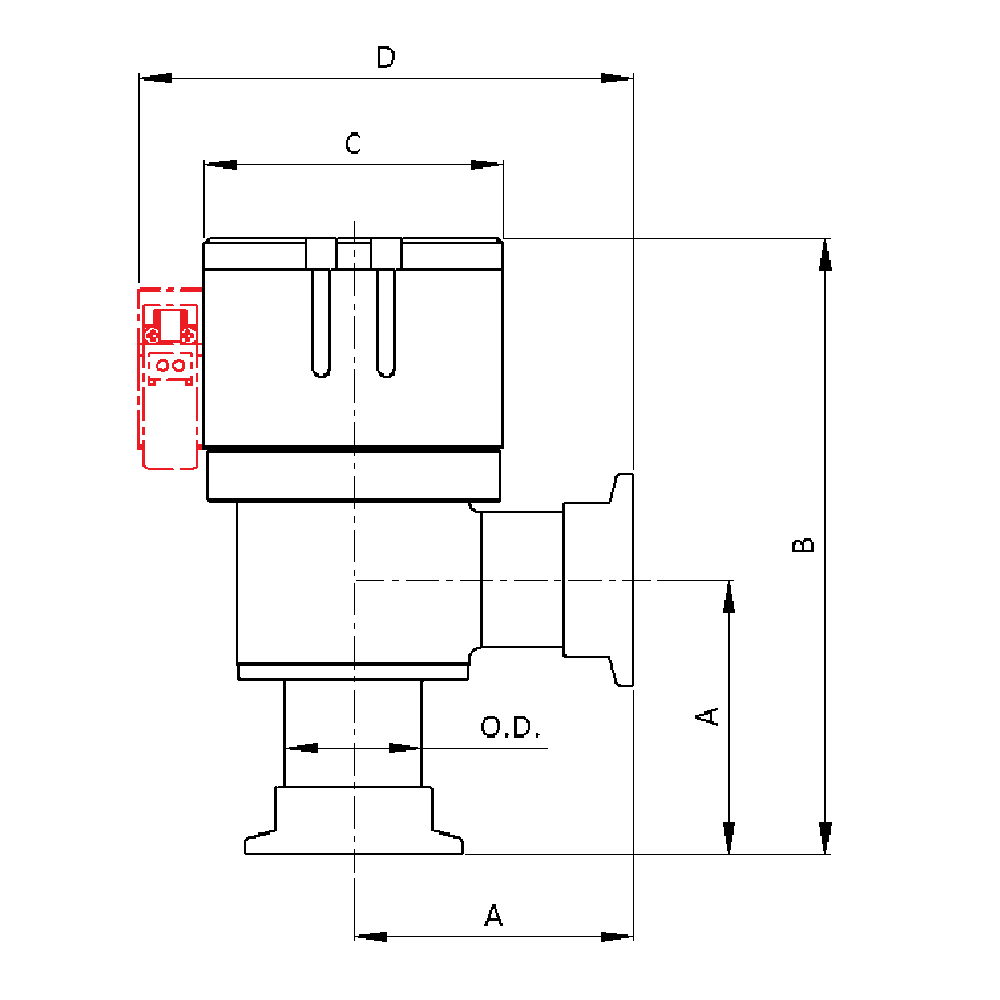

KF-HV-Stainless-steel-angle-valve-single-acting-normally-close-1.png)
| select | ||||||||||||||||
| Model No. | AVBH-KF16-P | AVBH-KF25-P | AVBH-KF40-P | AVBH-KF50-P | AVBHS-KF16-P | AVBHS-KF25-P | AVBHS-KF40-P | AVBHS-KF50-P | AVBHSV-KF16-P-24VDC | AVBHSV-KF25-P-24VDC | AVBHSV-KF40-P-24VDC | AVBHSV-KF50-P-24VDC | AVBHSSV-KF16-P-24VDC | AVBHSSV-KF25-P-24VDC | AVBHSSV-KF40-P-24VDC | AVBHSSV-KF50-P-24VDC |
| Parts No. | 30110911001A | 30111111001A | 30111311001A | 30111411001A | 30110911021A | 30111111021A | 30111311021A | 30111411021A | 30110911101A | 30111111101A | 30111311101A | 30111411101A | 30110911121A | 30111111121A | 30111311121A | 30111411121A |
| A | 54.6 | 51.6 | 61 | 86.3 | 54.6 | 51.6 | 61 | 86.3 | 54.6 | 51.6 | 61 | 86.3 | 54.6 | 51.6 | 61 | 86.3 |
| B | 118 | 116 | 157 | 189 | 118 | 116 | 157 | 189 | 118 | 116 | 157 | 189 | 118 | 116 | 157 | 189 |
| C | 46.4 | 55.4 | 70.4 | 77 | 46.4 | 55.4 | 70.4 | 77 | 46.4 | 55.4 | 70.4 | 77 | 46.4 | 55.4 | 70.4 | 77 |
| D | - | - | - | - | - | - | - | - | 58.4 | 67.4 | 87.3 | 94 | 58.4 | 67.4 | 87.3 | 94 |
| O.D. | 19.1 | 25.4 | 38.1 | 50.8 | 19.1 | 25.4 | 38.1 | 50.8 | 19.1 | 25.4 | 38.1 | 50.8 | 19.1 | 25.4 | 38.1 | 50.8 |
| Select | Model No. | Parts No. | A | B | C | D | O.D. |
| AVBH-KF16-P | 30110911001A | 54.6 | 118 | 46.4 | - | 19.1 | |
| AVBH-KF25-P | 30111111001A | 51.6 | 116 | 55.4 | - | 25.4 | |
| AVBH-KF40-P | 30111311001A | 61 | 157 | 70.4 | - | 38.1 | |
| AVBH-KF50-P | 30111411001A | 86.3 | 189 | 77 | - | 50.8 | |
| AVBHS-KF16-P | 30110911021A | 54.6 | 118 | 46.4 | - | 19.1 | |
| AVBHS-KF25-P | 30111111021A | 51.6 | 116 | 55.4 | - | 25.4 | |
| AVBHS-KF40-P | 30111311021A | 61 | 157 | 70.4 | - | 38.1 | |
| AVBHS-KF50-P | 30111411021A | 86.3 | 189 | 77 | - | 50.8 | |
| AVBHSV-KF16-P-24VDC | 30110911101A | 54.6 | 118 | 46.4 | 58.4 | 19.1 | |
| AVBHSV-KF25-P-24VDC | 30111111101A | 51.6 | 116 | 55.4 | 67.4 | 25.4 | |
| AVBHSV-KF40-P-24VDC | 30111311101A | 61 | 157 | 70.4 | 87.3 | 38.1 | |
| AVBHSV-KF50-P-24VDC | 30111411101A | 86.3 | 189 | 77 | 94 | 50.8 | |
| AVBHSSV-KF16-P-24VDC | 30110911121A | 54.6 | 118 | 46.4 | 58.4 | 19.1 | |
| AVBHSSV-KF25-P-24VDC | 30111111121A | 51.6 | 116 | 55.4 | 67.4 | 25.4 | |
| AVBHSSV-KF40-P-24VDC | 30111311121A | 61 | 157 | 70.4 | 87.3 | 38.1 | |
| AVBHSSV-KF50-P-24VDC | 30111411121A | 86.3 | 189 | 77 | 94 | 50.8 |
规格
- 316Ti不锈钢波纹管
- 不锈钢机身
- 维护方便，波纹管和密封件更换快速
- 快速打开和关闭
阀门对照表
| 适用地区 | 法兰 | 电磁阀 | 传感器 | 波纹管 | 16 | 25 | 40 | 50 |
| 美国 | KF | √ | 30110911001A | 30111111001A | 30111311001A | 30111411001A | ||
| 美国 | KF | √ | √ | 30110911021A | 30111111021A | 30111311021A | 30111411021A | |
| 美国 | KF | 24VDC | √ | 30110911101A | 30111111101A | 30111311101A | 30111411101A | |
| 美国 | KF | 24VDC | √ | √ | 30110911121A | 30111111121A | 30111311121A | 30111411121A |
