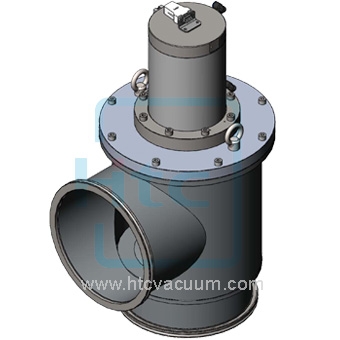

ISO200 排气角阀
破真空阀/粗抽阀 Venting Valve/Pumping Valve
KF-HV-Stainless-steel-angle-valve-single-acting-normally-close.png)

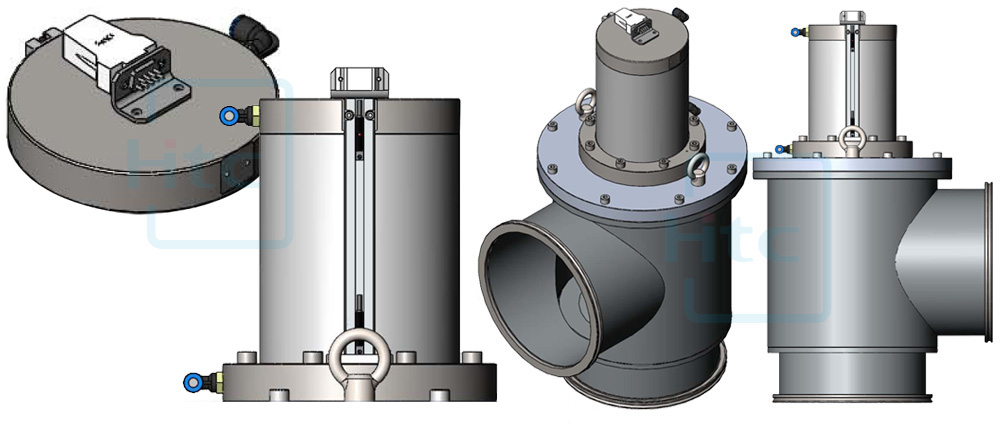

客制ISO200 排气角阀

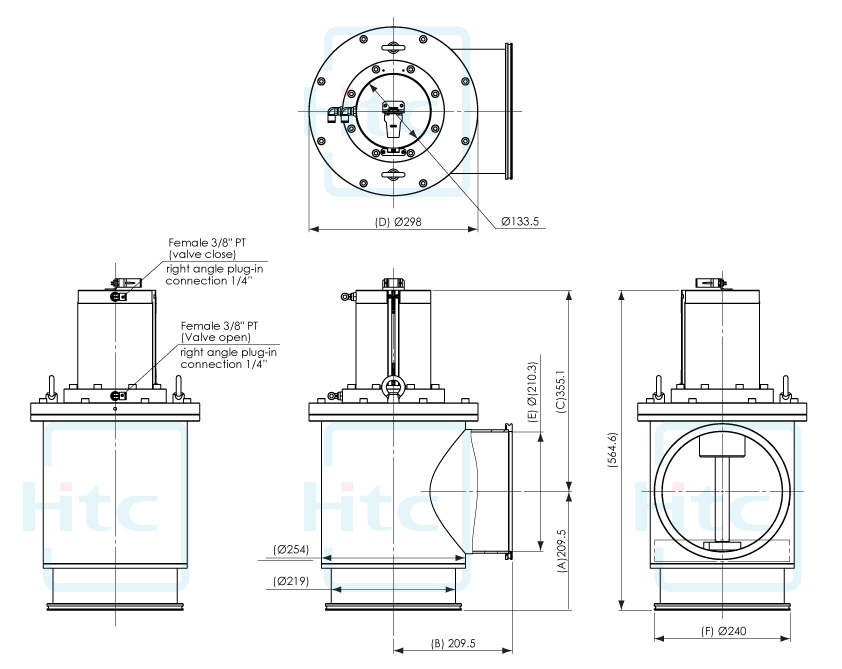

外观尺寸图
技术规格
|
尺寸 |
ISO200 |
||
|
材质 |
Valve body |
304 S.S. |
|
|
Poppet seat |
304 S.S. |
||
|
Cylinder (Actuator) |
304 S.S. |
||
|
开闭时间 |
Opening time |
3 sec |
|
|
Closing time |
3 sec |
||
|
密封 O-ring |
Viton or Option |
||
|
使用寿命 |
1,000,000 cycles |
||
|
泄漏率 |
<1 x10-9 mbar. L /sec for O-ring |
||
|
使用温度 |
Body |
Open |
<120℃ |
|
Closed |
<70℃ |
||
|
压力范围 |
1x10-7 mbar to 1.1 bar (abs) |
||
|
开闭容许压差 |
≤ 1.1 bar. ( 1.1 bar with reduce number of cycles ) |
||
|
操作气压源压力 |
5-7 bar |
||
|
位置指示器 |
Reed sensor 24V DC |
||
|
电磁阀 |
选配 Option |
||

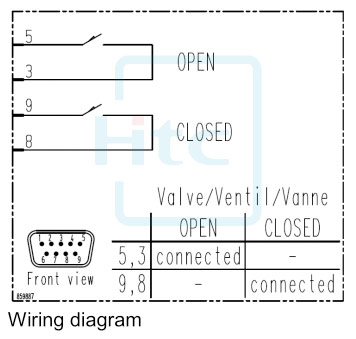

电路接线说明
| Electrical connection Position indicator Type : Micro switch Voltage : ≤50V AC/DC Current : 5-100mA Short circuit protected : No |
 |
